5 Signs Your Knock Sensor Needs Replacement

Have you ever heard a knocking or pinging noise from your engine when you step on the gas? If so, you might have a problem with your knock sensor. A knock sensor is a small device that detects abnormal vibrations and sounds coming from the engine block and sends a signal to the engine control unit (ECU) to adjust the ignition timing accordingly. This helps prevent pre-ignition or detonation, which can cause serious engine damage if left unchecked. In this article, we will explain what a knock sensor is, how it works, and how to tell if it needs replacement. We will also provide some tips on how to prevent knock sensor failure and keep your engine running smoothly. By the end of this article, you will be able to identify the five signs of a bad knock sensor and know what to do about it.

Sign 1: Check Engine Light (CEL) comes on


One of the most common signs of a bad knock sensor is an illuminated check engine light (CEL) on your dashboard. A failed knock sensor will register a trouble code and send it to the engine control unit (ECU), which will then turn on the CEL to alert you of the problem.

To find out what the trouble code is, you need to use a code reader or a scan tool to access the ECU’s memory. The codes most indicative of a bad knock sensor are:

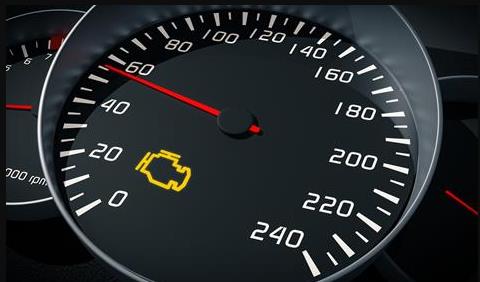

Check Engine Light (CEL) comes on
  • P0325: Knock Sensor Malfunction (Sensor 1, Bank 1) – This code indicates a problem with the electrical circuit of the knock sensor on bank 1, which could be due to a bad sensor, wiring issues, failed ECU, or connector problems.
  • P0326: Knock Sensor Range/Performance (Sensor 1, Bank 1) – This code indicates that the signal from the knock sensor on bank 1 is outside of the normal range or performance, which could be caused by a faulty sensor, poor wiring, incorrect fuel octane or engine mechanical problems.
  • P0327: Knock Sensor Low Input (Sensor 1, Bank 1) – This code indicates that the signal from the knock sensor on bank 1 is too low or weak, which could be caused by a bad sensor, wiring problems, connector issues or excessive engine noise.
  • P0328: Knock Sensor High Input (Sensor 1, Bank 1) – This code indicates that the signal from the knock sensor on bank 1 is too high or strong, which could be caused by a bad sensor, wiring problems, connector issues or excessive engine noise.

There may be other codes related to the knock sensor depending on your vehicle’s make and model. For example, some vehicles have two knock sensors for each bank of cylinders, so you may see codes for sensor 2 or bank 2 as well. You may also see codes for other systems that are affected by the knock sensor, such as ignition timing, fuel injection or oxygen sensors.

To diagnose a bad knock sensor with a code reader or a scan tool, you need to follow these steps:

  • Check the engine codes. Connect the code reader or scan tool to the diagnostic port under your dashboard and turn on the ignition. Read and record the codes displayed on the device’s screen.
  • Clear out the codes and do a road test to see what comes back. Erase the codes from the ECU’s memory using the device’s function and drive your vehicle for a while under different conditions. Check if the CEL comes back on and if any codes reappear.
  • With the live data function on your scanner, you can measure the voltage of the knock sensor to ensure it remains within the range set in your service manual. If the voltage is too high or too low, it indicates a problem with the sensor or its circuit.
  • Look at the wiring and connectors of the knock sensor. Locate the knock sensor on your engine and inspect its wiring and connectors for any signs of damage, corrosion or looseness. Repair or replace any faulty parts as needed.
  • Test the resistance of the knock sensor. Disconnect the electrical connector from the knock sensor and use a multimeter to measure its resistance. Compare it with the specifications in your service manual. If it is out of range, replace the sensor.
  • Test the operation of the knock sensor. Reconnect the electrical connector to the knock sensor and use a mechanic’s stethoscope to listen for any knocking sounds from your engine. Tap lightly on your engine block near the sensor with a metal object and observe if there is any change in your engine’s performance or sound. If there is no change, it means that your knock sensor is not working properly and needs to be replaced.

If you have followed these steps and confirmed that your knock sensor is bad, you should replace it as soon as possible to avoid further damage to your engine.

Sign 2: Engine misfire


Another sign of a bad knock sensor is an engine misfire. This means that the engine is not running smoothly and efficiently, and may lose power, hesitate, or stall under acceleration. This is because a faulty knock sensor can cause the ECU to adjust the ignition timing incorrectly, resulting in poor combustion and wasted fuel.

Engine misfire
Engine misfire

Engine misfires can also cause other problems, such as increased emissions, reduced fuel economy, and damage to the catalytic converter. You may notice a rough idle, a lack of responsiveness, or a sputtering sound from your engine when it misfires.

To diagnose engine misfire, you can use a scan tool to check for any trouble codes related to the ignition system, such as P0300 (Random/Multiple Cylinder Misfire Detected) or P0301-P0312 (Cylinder X Misfire Detected). You can also use the scan tool’s live data function to monitor the engine’s RPM, spark advance, and fuel trim.

If you suspect that your knock sensor is causing an engine misfire, you can test it by using a timing light to check the ignition timing. Connect the timing light to the number one spark plug wire and point it at the timing marks on the crankshaft pulley. Start the engine and observe the timing marks. If they are not aligned with the specifications in your service manual, it means that your knock sensor is not working properly and needs to be replaced.

Sign 3: Engine knock or ping


A more obvious sign of a bad knock sensor is a knocking or pinging noise from your engine. This noise is caused by pre-ignition or detonation, which is when the air-fuel mixture in the cylinder ignites before the spark plug fires. This creates a shock wave that collides with the piston and cylinder wall, producing a metallic sound.

Engine knock or ping
Engine knock or ping

Engine knock or ping can be very harmful to your engine, as it can cause excessive heat and pressure that can damage the piston, cylinder head, or spark plug. It can also increase the emissions of nitrogen oxides (NOx), which are harmful to the environment and human health.

Engine knock or ping can be caused by several factors, such as:

  • Low octane fuel, poor fuel quality, or water in the fuel. These can lower the resistance of the fuel to ignition and cause it to burn too easily.
  • Lean air-fuel mixture. This can make the combustion chamber hotter and more prone to pre-ignition.
  • Spark plug gap. If the gap between the electrodes of the spark plug is too wide or too narrow, it can affect the spark timing and intensity, leading to improper combustion.
  • Faulty or clogged fuel injectors. These can affect the fuel delivery and spray pattern, resulting in uneven combustion and hot spots.
  • Bad knock sensor. As mentioned earlier, a bad knock sensor can fail to detect and correct pre-ignition or detonation by adjusting the ignition timing.
  • Carbon deposits on the piston and engine cylinder. These can increase the compression ratio and create hot spots that can trigger pre-ignition.

To diagnose engine knock or ping, you can use a mechanic’s stethoscope to listen for any abnormal sounds from your engine, especially under load or high temperature. You can also use a scan tool to check for any trouble codes related to the knock sensor or other systems that may cause pre-ignition or detonation.

If you confirm that your knock sensor is causing engine knock or ping, you should replace it as soon as possible to prevent further damage to your engine.

Sign 4: Poor fuel economy


A less noticeable but still significant sign of a bad knock sensor is poor fuel economy. This means that your car is consuming more gas than it should for the distance you are driving. This can affect your budget and the environment, as you are spending more money on gas and producing more emissions.

Poor fuel economy
Poor fuel economy

Poor fuel economy can be caused by several factors related to a faulty knock sensor, such as:

  • Low octane fuel, poor fuel quality, or water in the fuel. These can lower the resistance of the fuel to ignition and cause it to burn too easily, resulting in incomplete combustion and wasted fuel.
  • Lean air-fuel mixture. This can make the combustion chamber hotter and more prone to pre-ignition, which can cause the ECU to retard the ignition timing and reduce the engine’s efficiency.
  • Spark plug gap. If the gap between the electrodes of the spark plug is too wide or too narrow, it can affect the spark timing and intensity, leading to improper combustion and wasted fuel.
  • Faulty or clogged fuel injectors. These can affect the fuel delivery and spray pattern, resulting in uneven combustion and wasted fuel.
  • Bad knock sensor. As mentioned earlier, a bad knock sensor can fail to detect and correct pre-ignition or detonation by adjusting the ignition timing, resulting in poor combustion and wasted fuel.

To diagnose poor fuel economy, you can use a scan tool to check for any trouble codes related to the knock sensor or other systems that may affect your gas mileage, such as oxygen sensors, mass air flow sensors, or throttle position sensors. You can also calculate your gas mileage manually by dividing the miles driven by the gallons of gas used.

If you confirm that your knock sensor is causing poor fuel economy, you should replace it as soon as possible to save money on gas and reduce your environmental impact.

Sign 5: Engine damage


The most serious sign of a bad knock sensor is engine damage. This can happen if you ignore the other signs and continue to drive your car with a faulty knock sensor. As we have explained, a bad knock sensor can cause pre-ignition or detonation, which is when the air-fuel mixture in the cylinder ignites before the spark plug fires. This creates a shock wave that collides with the piston and cylinder wall, producing a metallic sound.

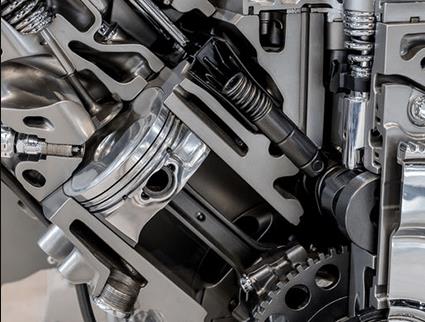

Engine damage
Engine damage

This shock wave can cause excessive heat and pressure that can damage the internal engine components, such as:

  • Piston damage. The piston can crack, melt, or break due to the high temperature and pressure caused by pre-ignition or detonation. This can lead to loss of compression, oil consumption, smoke, and engine failure.
  • Cylinder head damage. The cylinder head can warp, crack, or blow a gasket due to the high temperature and pressure caused by pre-ignition or detonation. This can lead to coolant leakage, overheating, misfiring, and engine failure.
  • Spark plug damage. The spark plug can melt, break, or wear out due to the high temperature and pressure caused by pre-ignition or detonation. This can lead to poor ignition, misfire, and engine failure.
  • Catalytic converter damage. The catalytic converter can overheat, melt, or clog due to the high temperature and unburned fuel caused by pre-ignition or detonation. This can lead to increased emissions, reduced performance, and engine failure.

To diagnose engine damage from a bad knock sensor, you can use a compression tester to check the compression of each cylinder. You can also use a borescope to inspect the piston, cylinder wall, and spark plug for any signs of damage. You can also use a scan tool to check for any trouble codes related to the engine or catalytic converter.

If you confirm that your knock sensor has caused engine damage, you should replace it as soon as possible and repair or replace any damaged engine parts.

Conclusion


In this article, we have explained what a knock sensor is, how it works, and how to tell if it needs replacement. We have also provided some tips on how to prevent knock sensor failure and keep your engine running smoothly. By the end of this article, you should be able to identify the five signs of a bad knock sensor and know what to do about it.

The five signs of a bad knock sensor are:

  • Check Engine Light (CEL) comes on
  • Engine misfire
  • Engine knock or ping
  • Poor fuel economy
  • Engine damage

If you notice any of these signs, you should use a scan tool or a code reader to check for any trouble codes related to the knock sensor. You should also use a timing light, a mechanic’s stethoscope, a multimeter, a compression tester, and a borescope to diagnose the problem further. If you confirm that your knock sensor is bad, you should replace it as soon as possible to avoid further damage to your engine.

To prevent knock sensor failure, you should:

  • Use good quality fuel with the right octane rating for your engine
  • Maintain proper engine cooling and avoid overheating
  • Replace the spark plugs and air filter regularly
  • Clean the fuel injectors and the throttle body periodically
  • Check the wiring and connectors of the knock sensor for any damage or corrosion

We hope that this article has been helpful and informative for you. If you have any questions or comments, please feel free to contact with us. Thank you for reading!

FAQs


Q: What causes a knock sensor to fail?

A: Knock sensors can fail due to normal wear and tear, exposure to extreme temperatures, or damage from engine components.

Q: Can a knock sensor be repaired instead of replaced?

A: In most cases, a knock sensor cannot be repaired and must be replaced if it has failed.

Q: Can I replace a knock sensor myself?

A: Replacing a knock sensor can be a complex and involved process, and it’s recommended to have it done by a professional mechanic to ensure proper installation and function.

Q: What is the cost of replacing a knock sensor?

A: The cost of replacing a knock sensor can vary depending on the make and model of your vehicle, as well as the location of the sensor. It’s recommended to get a quote from a reputable mechanic before having the work done.

Q: How can I diagnose a faulty knock sensor?

A: A faulty knock sensor can be diagnosed with a diagnostic scan tool that reads engine codes and can identify the specific sensor causing the issue.

Q: What happens if I ignore a faulty knock sensor?

A: Ignoring a faulty knock sensor can lead to decreased engine performance, poor fuel economy, and potential engine damage from persistent knock.

Q: Can a knock sensor fail intermittently?

A: Yes, a knock sensor can fail intermittently, which can cause sporadic engine performance issues and difficult diagnosis.

Q: Will a bad knock sensor cause a car to fail emissions?

A: Yes, a bad knock sensor can cause a car to fail emissions, as it can lead to increased exhaust emissions and decreased engine performance.
