If you work with high quality sound, precision analogue signal processing or low noise instruments, you’ve probably heard of Texas Instruments‘ LM4562 dual operational amplifier (op-amp), renowned for its extremely low distortion, high conversion efficiency and excellent noise performance. It’s popular with audiophiles, sound engineers and precision analogue system developers.
In this article, we delve into the fascinating world of the LM4562, exploring its features, internal structure, typical applications and how to get started. We’ll also show you where to find genuine LM4562 amplifiers and supporting components to improve your next project.
What is LM4562?
The LM4562 is a high-performance two-channel operational amplifier designed for audio, professional instruments and precision analog applications . It is a member of the Texas Instruments SoundPlus™ family, which is specifically optimized for low noise, low distortion and high linearity.
For more information on the LM4562 and other audio-class operational amplifiers, please contact DRex Electronics.
Key features of the LM4562
- Very low Total Harmonic Distortion (THD+N): 0.00003 percent
- Low input voltage noise: 2.7 nV/√Hz
- High conversion rate: 20 V/µs
- Wide gain frequency: 55 MHz
- High open loop gain: 120 dB
- Dual channel (2 operational amplifiers on a single chip)
- ✅ Low offset voltage: 0.1 mV typical
- ✅ Available in DIP and SOIC packages
These features make it ideal for use in sound amplifiers, active filters, D/A buffers and metering systems.
LM4562 (8-pin DIP/SOIC) pinout circuitry
lua
+————-+
OUTA | 1 8 | V+
-INA | 2 7 | OUTB
+INA | 3 6 | -INB
V- | 4 5 | +INB
+————-+
- A/B: Operational amplifier two independent channels
- IN+ / IN-: Sine and inverted inputs
- V+ / V-: Positive and negative power supply outputs
The unit operates from a single power supply of ±2.5V to ±17V or 5V to 34V, making it flexible for audio and instrumental applications.
Why choose the LM4562?
Sound engineers and analogue designers love the LM4562 for the following reasons:
- High sound quality – near-zero harmonic distortion and extremely low noise.
- Precise measurements – extremely accurate signal processing with minimal drift.
- Flexible power range – two power supplies for professional sound equipment.
- Direct replacement – easily replace other op-amps in traditional audio systems for improved performance.
Compared to general-purpose op-amps such as the TL072 or NE5532, the LM4562 offers significant improvements in sound clarity and detail .

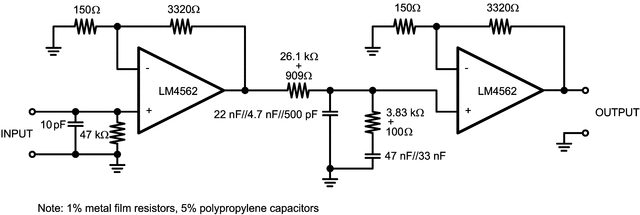

Typical applications of the LM4562
🎚️ Audio preamplifier
Amplifies microphone or instrument signals with extremely low noise and distortion.
Headphone amplifiers
Provides clarity and dynamic range for high impedance headphones.
🎼 Hi-Fi and studio equipment
For mixers, equalizers and audio interfaces.
🧪 Measurement and test equipment
Ideal for precise signal amplification in sensitive analogue measurements.
DAC/ADC buffering
Buffers data converters to reduce noise and distortion.
Design tips for using the LM4562
- Use low ESR shunt capacitors (e.g. 0.1 µF ceramic capacitor + 10 µF tantalum capacitor) near the V+ and V- pins for stable operation.
- For best performance, use metal film capacitors and polypropylene film capacitors on the signal path.
- Keep the feedback path short and the circuit simple to minimize noise cross-talk.
- Avoid ground loops in sound systems to avoid hum and distortion.
Do you need these components? Buy passive components, connectors and accessories from DRex Electronics.
LM4562 vs Other High-Performance Op-Amps
| Feature | LM4562 | OPA2134 | NE5532 |
|---|---|---|---|
| THD+N | 0.00003% | 0.00008% | 0.001% |
| Slew Rate | 20 V/µs | 20 V/µs | 9 V/µs |
| Voltage Noise | 2.7 nV/√Hz | 8 nV/√Hz | 5 nV/√Hz |
| Bandwidth | 55 MHz | 8 MHz | 10 MHz |
| Audio Performance | ★★★★★ | ★★★★☆ | ★★★☆☆ |
The LM4562 clearly stands out for ultra-low distortion and highest fidelity.
Where to buy LM4562 and audio components
At DRex Electronics we offer:
- ✅ Original LM4562 operational amplifiers in DIP and SOIC packages.
- Original4562 and ORL6245 seriescomponents.
- Connectors, development boards and test tools for operational amplifiers.
- Fast worldwide delivery and reliable sources for engineers and OEMs.
🛒 Buy analog ICs today for improved sound quality and accurate analog design.
Summary
The LM4562 is more than just an op-amp; it’s a tool for audio and precision engineering. With industry-leading specifications and excellent sound, it is the best choice for high-quality audio and instrumentation, and for all applications where signal integrity is important.
Ready to unlock the potential of your analogue designs?
Create your own project with the LM4562 and rest assured that this product is now available from DRex Electronics, your trusted supplier of professional electronics components.
