Capacitive cells or capacitors are an integral part of modern electronics. In almost all circuits, from smartphones to power supplies, capacitors are used for various purposes such as energy storage, signal filtering, timing and noise reduction.
In this article we will introduce you to capacitor components, explain how they work, look at the different types and help you choose the right capacitor component for your project. We will also tell you where to find high quality capacitive and passive components from DRex Electronics.
What is a capacitor?
A capacitor is a double-sided electronic component that stores electrical energy in an electric field. It consists of two conductive plates separated by an insulating material called a dielectric.
When a voltage is applied to these two plates, a positive charge is accumulated on one plate and a negative charge on the other, creating an electric field between them.
The basic formula is:
C=dεA
where.
- C is the capacitance in farads (F)
- ε is the dielectric constant of the dielectric.
- A is the area of the polar disc
- d is the distance between the two plates
See the full range of ceramic, electrolytic, film and tantalum capacitors from DRex Electronics.
What are the capacitors designed for?
Capacitors play a number of roles in electronic circuits, including
- Filtering – removing noise from power or signals.
- Discharge – voltage stabilisation and peak voltage removal.
- Timing – works with resistors in RC timing circuits.
- switching – transmission of switching signals between amplifier stages.
- Energy storage – short-term power supply
Capacitors are important components in analogue, digital, RF and power electronics.
The most common types of capacitors are
- ceramic capacitors
- Small size, low cost, high frequency sensitivity
- Used in discharge, filtering and radio-frequency circuits.
- Often denoted by picofarads (pF).
Buy ceramic capacitors for your next high-frequency or general-purpose project.

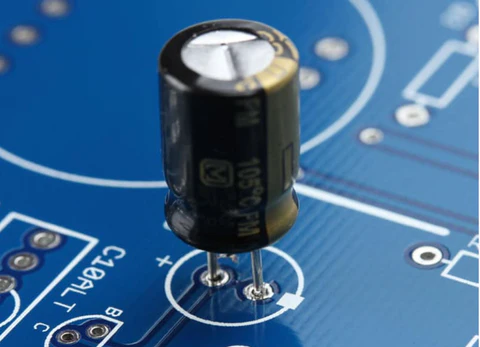

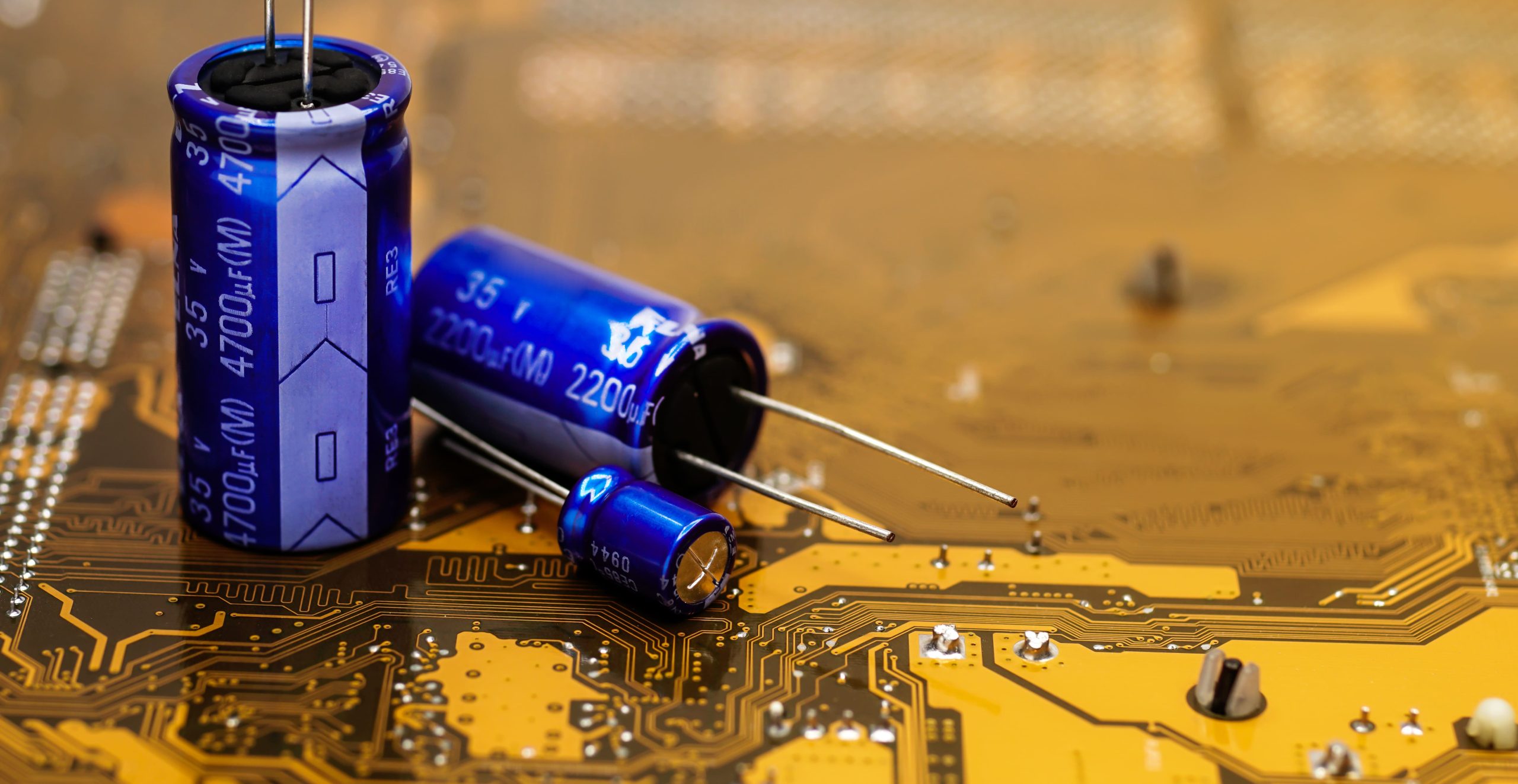

Electrolytic capacitors
- High capacitance values (µF to mF).
- Polarised (with + and – terminals).
- For power filtering and energy storage
Tantalum capacitors
- Stable, small size, polarised
- In many cases better than electrolytic capacitors.
- Used in compact devices and precision circuits 4.
- Membrane capacitors
- Stable, non-polarised, low losses.
- Suitable for audio, synchronisation and high-pass filtering 5.
- ultracapacitors
- Very high capacitance (farads)
- For energy storage and backup power supplies
- Fills the gap between capacitors and batteries
Real life applications of capacitors
Functions of capacitors
Power supplies Voltage balancing and filtering
Audio playback equipment Switching and cross-connection networks
Computers and telephones Power stabilisation, noise reduction
LED lighting Flicker control and energy management
Energy management and regenerative braking in electric vehicles (EV)
🛠️ How to choose the right capacitor
- Capacitance value (C) – pF, nF or µF.
- Voltage value – must exceed the maximum voltage of the circuit.
- Dielectric type – affects size, stability and tolerance.
- Tolerance – the allowable deviation from nominal values.
- Type of seal – through-hole or surface mount (SMD).
Need help choosing the right part? See our capacitor selection guide or contact our support team.
Tips on how to use capacitors in your design
- Place discharge capacitors close to the power contacts of the chip.
- Use capacitors with low ESR in high frequency power buses.
- For better filtering, combine large electrolytic capacitors with small ceramic capacitors.
- Use film or ceramic capacitors in synchronisation to improve accuracy.
- Use supercapacitors for short-term energy storage in critical systems.
Where to buy capacitive components?
DRex Electronics can:
- A wide range of ceramic, electrolytic, tantalum and film capacitors .
- Capacitor groups, SMD and hole formats.
- ✅ High volume orders for OEMs, repair shops and R&D groups.
- Reliable delivery, specifications and technical support.
Buy our full range of capacitors and passive components today.
✅ Conclusions
Capacitors are important and versatile components that have many functions in electronic circuits. Whether you are building a power supply, tuning a signal or designing a high performance system, choosing the right capacitor can be very important.
Are you ready to power your next project with the right capacitors?
Visit DRex Electronics, your trusted source for high-quality capacitive components and passive solutions for today’s electronics.
