In the rapidly developing fields of automated manufacturing, space engineering, medical diagnostics, and scientific instruments, the need for accurate and highly precise data has never been more urgent than it is today. Analog-to-digital converters (ADCs) are essential components of these systems.
However, not all ADCs perform equally, especially in applications that require high accuracy, correctness, and signal integrity. In this article, we will discuss the key factors that make ADCs suitable for high-precision data acquisition systems and provide information on how to obtain these advanced components from DRex Electronics to support your critical designs.
🎯 What makes ADC converters suitable for high-precision data acquisition?
A high-precision data acquisition system can capture analog signals from the real world, such as temperature, pressure, vibration, and electrical voltage, and convert them into digital signals. It typically operates in environments that require accuracy and reliability.
Key features of ADC converters:
Feature Importance
Accuracy (24 bits or more) The higher the number of bits, the higher the signal accuracy and the higher the accuracy.
Low noise (high signal-to-noise ratio/number of effective bits) Ensures that the signal is not masked by noise.
Low power consumption is extremely important for battery-powered devices or peripheral devices.
Synchronized mapping is extremely important for synchronized multi-channel applications.
Integrated features can simplify your design and improve performance with an integrated PGA in the chip, reference voltage, or digital filter.
✅ Recommended ADC: Analog Devices AD7768
In high-precision environments, the AD7768 from Analog Devices is one of the best ADCs in terms of performance. (external link)
Why choose the AD7768?
- 🔹 24-bit accuracy
- 🔹 8 channels of synchronized recording
- 🔹 Dynamic range up to 109 decibels
- 🔹 Flexible power mode that balances efficiency and performance
- 🔹 Integrated digital filter and recording acceleration
- 🔹 SPI digital interface
This converter is suitable for use in:
- Industrial vibration monitoring
- Medical imaging equipment
- Advanced test and measurement equipment
- Aerospace equipment
🔗 Looking for AD7768 or a compatible replacement? Visit DRex Electronics, which offers global purchasing services and fast delivery.
🧠 Replacement: Texas Instruments ADS1262

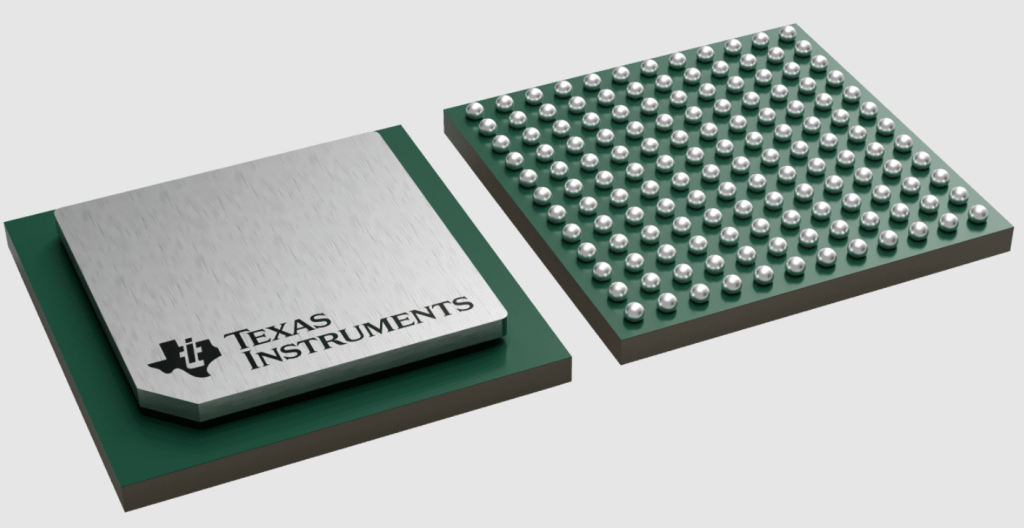

ADS1262 from Texas Instruments is another excellent choice for precision systems. (external link)
- 🟢 32-bit delta-sigma ADC
- 🟢 Integrated PGA, reference voltage, and temperature sensor
- 🟢 Specially designed for low noise and jitter applications
- 🟢 Used in medical, industrial, and scientific systems
🔗 Buy TI ADC from DRex and get an ISO-certified quality guarantee.
🏭 Practical applications of high-precision ADC converters
🧪 Test and measurement equipment
Oscilloscopes, spectrum analyzers, and scientific data loggers require high accuracy and low noise to achieve signal capture accuracy.
🛫 Aviation systems
Flight data recorders, environmental sensors, and avionics use high-precision ADCs for remote reception and diagnostics in harsh environments.
⚙️ Industrial control
Condition-based maintenance systems use 24-bit ADCs to detect subtle changes in vibration, temperature, or electrical current.
🩺 Medical devices
Applications such as electrocardiograms (ECG), electroencephalograms (EEG), and patient monitoring devices rely on low-noise, high-accuracy ADCs to process biological signals.
DRex Electronics provides all of these industries with verified purchasing, technical support, and component lifecycle tracking services.
🧩 How to choose the right ADC for your design
When selecting an ADC for a high-accuracy data acquisition system, consider the following factors:
- ✅ Signal type: differential or unipolar?
- ✅ Sampling frequency: is the signal change fast or slow?
- ✅ Input range: Make sure it is compatible with the sensor output.
- ✅ System noise budget: Select an ADC with sufficient signal-to-noise ratio (SNR) and low total harmonic distortion (THD).
- ✅ Interface: SPI, I²C, or parallel interface – depending on the control unit.
- ✅ Operating environment: temperature, vibration, electromagnetic interference (EMI), etc.
💡 Not sure which type of ADC is best for you? Contact the DRex Electronics team for recommendations tailored to your application.
🌍 Why choose DRex Electronics as your microcomponent supplier?
At DRex Electronics, we help engineers and original equipment manufacturers get:
- 🔒 Original parts from trusted brands such as Analog Devices, Texas Instruments, and Microchip
- 🌎 Global logistics services ensuring fast delivery and long-term support
- 🧰 Purchase related components from a single source, such as precision operational amplifiers, voltage standards, and FPGAs
- 📋 ISO 9001-certified purchasing process, suitable for the aerospace, automotive, and industrial design industries
Whether you need samples for research and development or quotes for high-volume production, we can meet your needs.
📌 Conclusion
When selecting an analog-to-digital converter (ADC) for a high-precision data acquisition system, the focus is not only on accuracy, but even more important is signal integrity, system integration, and long-term reliability. Devices such as the AD7768 and ADS1262 provide the performance needed to obtain accurate digital information in real time from the most sensitive analog signals.
