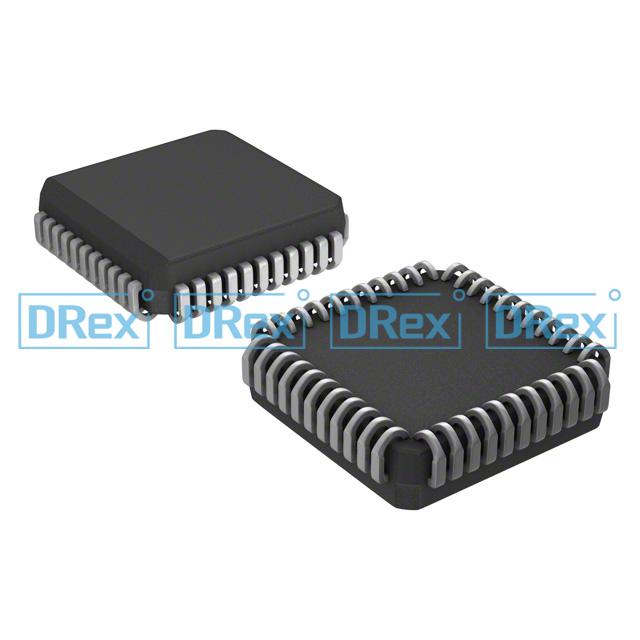

ATF2500C-10JC: High-Speed, Non-Volatile CPLD for Advanced Logic Applications

In the world of embedded electronics, programmable logic devices (PLDs) remain a cornerstone for implementing customized, flexible logic solutions. The ATF2500C-10JC from Microchip Technology is a powerful Flash-based CPLD designed for engineers who require fast, reliable, and non-volatile programmable logic with 10 ns performance.

At DRex Electronics, we specialize in providing advanced logic devices like the ATF2500C-10JC, ensuring supply stability and authentic sourcing for mission-critical OEM and industrial customers.

Technical Overview of the ATF2500C-10JC

The ATF2500C-10JC offers high-speed logic integration and flexibility with non-volatile Flash technology, combining fast timing with instant-on performance — perfect for designs where configuration time and reliability are crucial.

Key Specifications:

• Device Type: CPLD (Complex Programmable Logic Device)

• Logic Elements: 96 macrocells, each configurable for combinatorial or registered logic

• Logic Capacity: ~2,500 usable gates

• Propagation Delay: 10 ns (ultra-fast speed grade)

• Configuration Memory: Flash-based, non-volatile (retains data without power)

• Operating Voltage: 5V CMOS-compatible

• I/O Pins: Up to 64 programmable input/output pins

• Package: JC = 84-pin PLCC (Plastic Leaded Chip Carrier)

• Temperature Range: Commercial (0°C to +70°C) and industrial versions available

• Programming Interface: JTAG (IEEE 1149.1 compliant)

• Architecture: Fully universal, capable of implementing complex combinatorial logic, counters, and state machines

For more programmable logic solutions, explore our FPGAs, CPLDs, and SoCs collection.

Advantages of the ATF2500C-10JC

1. Ultra-Fast Performance:
   With 10 ns propagation delay, it’s optimized for timing-sensitive digital logic designs.

2. Non-Volatile Memory:
   Flash-based configuration ensures instant-on operation without external memory.

3. High Logic Density:
   Up to 96 macrocells support complex, multi-level logic circuits in compact form factors.

4. Low Power Operation:
   CMOS technology provides efficient power consumption and thermal stability.

5. Design Flexibility:
   Suitable for replacing older TTL logic, PALs, and other programmable devices with ease.

Applications of the ATF2500C-10JC

The ATF2500C-10JC is ideal for systems that demand fast, reliable, and flexible logic control:

• Telecommunications: Network controllers, data routers, and signal timing circuits

• Aerospace & Defense: Avionics logic, fault-tolerant controllers, and mission-critical systems

• Industrial Automation: PLC control logic, robotics, and high-speed machine interfaces

• Automotive Electronics: ECU signal conditioning, dashboard logic, and safety control units

• Consumer Electronics: Display controllers, peripheral logic, and power management modules

To explore more semiconductors suited for industrial and aerospace systems, check our Lattice Semiconductor product overview.

Why OEMs Choose the ATF2500C-10JC

• Instant-On Flash Design: Eliminates configuration delays typical in SRAM-based FPGAs.

• Reliable Longevity: Proven Flash memory ensures consistent performance over years of operation.

• Legacy Compatibility: Drop-in replacement for existing logic in legacy hardware.

• Simplified Integration: Reduces PCB space by consolidating multiple discrete logic devices.

• Certified Sourcing: With DRex Electronics, OEMs enjoy ISO 9001-certified sourcing and end-to-end quality assurance.

External Resources for Engineers

To learn more about the ATF2500C-10JC and related programmable logic technologies:

• Microchip ATF2500C Family Overview – Datasheets, design tools, and technical documents

• What is a CPLD? – Educational resource explaining CPLD architecture and operation

• JTAG (IEEE 1149.1) Explained – Overview of JTAG programming and boundary-scan standards

Final Thoughts

The ATF2500C-10JC is a high-speed, Flash-based CPLD that offers 10 ns propagation delay, instant-on operation, and 2,500 logic gate capacity — ideal for demanding applications in telecommunications, industrial automation, and aerospace. Its non-volatile design ensures reliable, repeatable operation in systems where uptime and precision matter most.

At DRex Electronics, we deliver strategic sourcing and supply chain solutions for programmable logic devices like the ATF2500C-10JC, empowering OEMs and engineers to achieve performance, flexibility, and long-term stability in their embedded designs.
