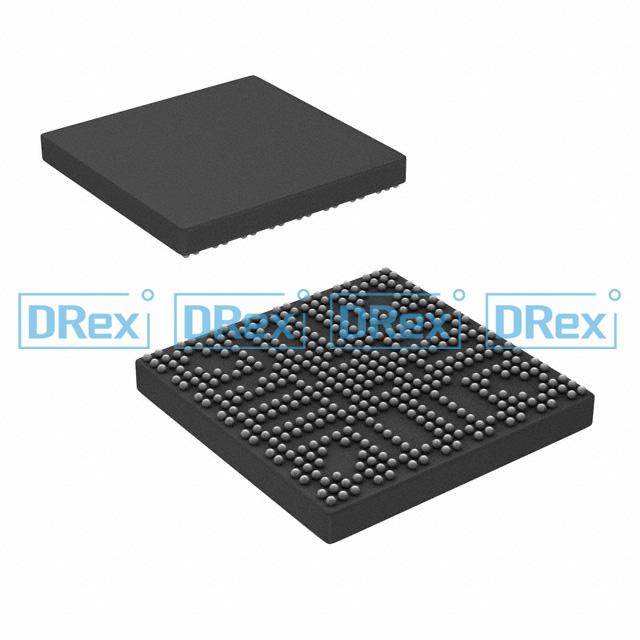

The DM3730CUS is a high-performance, low-power application processor developed by Texas Instruments. It is part of the Sitara™ and OMAP™ processor families and is built around the ARM Cortex-A8 core architecture with enhanced multimedia capabilities, including 3D graphics, video acceleration, and DSP support. The DM3730 is engineered for use in compact, power-efficient embedded systems requiring strong compute performance and multimedia processing.
🔧 Technical Specifications: DM3730CUS
| Parameter | Specification |
|---|---|
| Part Number | DM3730CUS |
| Core Processor | ARM Cortex-A8 |
| DSP Core | TMS320C64x+ (Digital Signal Processor) |
| Clock Speed | Up to 1 GHz (ARM) / 800 MHz (DSP) |
| Graphics Engine | PowerVR SGX530 GPU |
| Video Acceleration | IVA2.2 Subsystem – HD video decode (MPEG-4, H.264) |
| Memory Interface | LPDDR/DDR2, NAND, NOR, eMMC |
| I/O Interfaces | USB OTG, I2C, UART, SPI, MMC/SD, GPIO |
| Package | POP (Package on Package), 0.4 mm pitch, 12x12mm |
| Operating Temperature Range | –40°C to +85°C (Industrial grade) |
📄 Texas Instruments DM3730 Datasheet (external)
🚀 Key Features
-
🧠 High-performance ARM Cortex-A8 core for fast compute with minimal power use
-
🎮 Integrated PowerVR SGX530 GPU for rich 3D graphics acceleration
-
🎥 Multimedia Engine (IVA2.2) supports real-time video decoding
-
🔌 Comprehensive peripheral support for industrial and consumer-grade interfaces
-
🔋 Low-power modes and dynamic voltage scaling for battery-powered systems
📦 Applications
1. Industrial Human-Machine Interfaces (HMIs)
The DM3730CUS is widely used in industrial touch panels and HMI systems due to its small footprint and efficient power management.
2. Portable Medical Devices
Its combination of low power, video acceleration, and rich interface support makes it ideal for portable ultrasound systems, patient monitors, and diagnostic tools.
3. Multimedia Consumer Electronics
Deployed in tablets, portable media players, and connected smart displays for multimedia playback and touchscreen control.
4. Point-of-Sale and Barcode Systems
Capable of running embedded Linux or Android, enabling advanced POS systems with graphical interfaces and barcode processing.
5. Robotics and Embedded Vision
Used in embedded robotics and edge AI applications, where local video decoding and control logic must coexist.
🛠️ Development Support
TI offers a rich set of development tools for the DM3730CUS, including:
-
Community and technical documentation available via TI E2E Support Forums
