How many transistors in a computer chip?

April 25, 2023
20230506181935

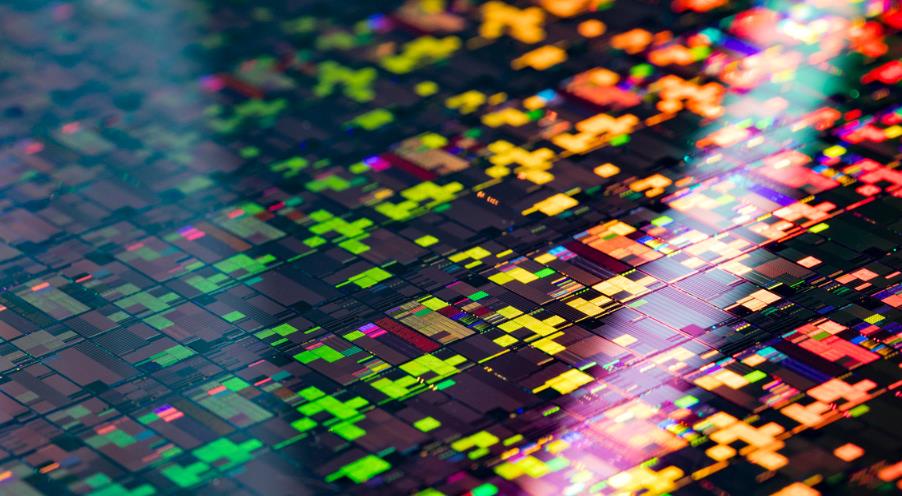

Have you ever wondered how many transistors are in a computer chip? And why does it matter? Transistors are the tiny switches that make up the logic circuits of a computer chip. They can be turned on or off individually, allowing them to store and process binary information. The more transistors a chip has, the more complex functions it can perform, the faster it can run, and the more energy-efficient it can be.

The Rise of the Transistor: from Invention to Integration


The transistor was invented in 1947 by John Bardeen, Walter Brattain, and William Shockley at Bell Labs. It was a breakthrough that revolutionized the fields of electronics and computing. A transistor is a semiconductor device that can amplify or switch electrical signals. It consists of three terminals: a source, a drain, and a gate. By applying a voltage to the gate, the current flowing from the source to the drain can be controlled. This way, a transistor can act as a switch or an amplifier.

The Rise of the Transistor: from Invention to Integration
The Rise of the Transistor: from Invention to Integration

The first transistors were bulky and fragile and had to be connected by wires. In 1958, Jack Kilby at Texas Instruments and Robert Noyce at Fairchild Semiconductor independently invented the integrated circuit (IC), which integrated multiple transistors and other components on a single piece of silicon. This made the circuits smaller, cheaper, faster, and more reliable. The IC was another breakthrough that enabled the development of modern computers and other electronic devices.

The first ICs had only a few transistors on them. But as the technology improved, more and more transistors could be packed on a chip. This increased the functionality and performance of the chip while reducing the cost and power consumption per transistor.

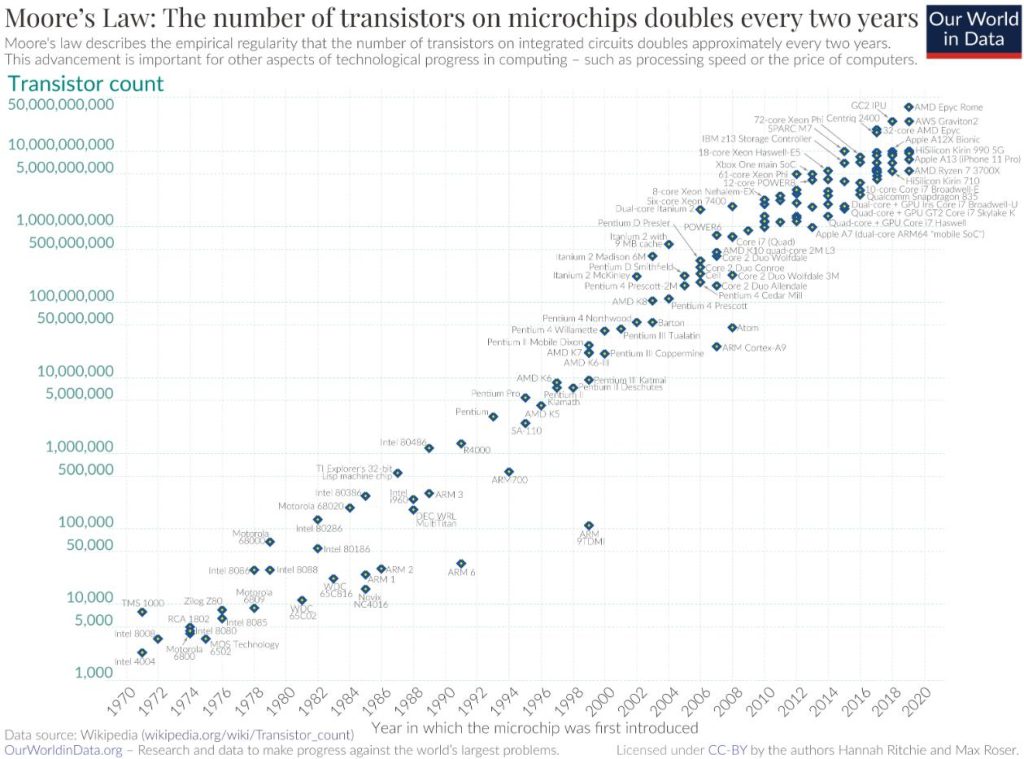

This trend of increasing transistor count in computer chips is known as Moore’s law, named after Gordon Moore, who observed in 1965 that the number of transistors on a chip doubles approximately every two years.

Moore’s law has been remarkably accurate for decades and has driven the advancement of computing technology. However, it is not a physical law, but an empirical observation and a self-fulfilling prophecy. As the transistors get smaller and smaller, they face physical limits and engineering challenges that make it harder to continue this trend. In recent years, some experts have declared that Moore’s law is slowing down or even ending. Others have argued that Moore’s law can be extended or redefined by introducing new materials, structures, and innovations.

How to squeeze more transistors on a chip: scaling, stacking, and specialization


How do engineers increase the transistor count in computer chips? The main method is to reduce the size of the transistors and the distance between them. This is measured by the process node, which is the smallest feature size that can be fabricated on a chip. The smaller the process node, the more transistors can fit on a chip. For example, a 7 nm process node can fit about four times more transistors than a 28 nm process node on the same area.

However, shrinking the transistors and the process node is not easy. It requires advanced lithography techniques, such as extreme ultraviolet (EUV) lithography, to etch the tiny patterns on the silicon wafer. It also requires new materials and structures, such as high-k metal gate (HKMG) and fin field-effect transistor (FinFET), to improve the electrical characteristics and reduce the leakage current of the transistors. Moreover, it faces physical limits and engineering challenges, such as quantum tunneling, heat dissipation, variability, reliability, and cost.

How to squeeze more transistors on a chip: scaling, stacking, and specialization
How to squeeze more transistors on a chip: scaling, stacking, and specialization

Another method to increase the transistor count is to stack multiple layers of transistors on top of each other. This is called 3D integration or vertical integration. It can increase the density and functionality of the chip, while reducing the power consumption and latency. However, it also poses technical challenges, such as thermal management, interconnects, testing, and yield.

A third method to increase the transistor count is to use novel architectures and designs that optimize the use of transistors for specific applications. For example, some chips use specialized cores or accelerators for tasks such as graphics processing, artificial intelligence, or cryptography. These chips can achieve higher performance and efficiency than general-purpose chips with the same transistor count.

In summary, increasing the transistor count in computer chips requires a combination of scaling, stacking, and specialization techniques. Each technique has its own advantages and disadvantages, and engineers have to balance them according to the requirements and constraints of each chip design.

A glimpse of the diversity of transistor counts: from flash memory to GPUs


To illustrate the trend of increasing transistor count in computer chips, let us look at some examples of different types and sizes of computer chips with varying transistor counts. We will compare them in terms of their process node, density, performance, and application.

A glimpse of the diversity of transistor counts: from flash memory to GPUs
A glimpse of the diversity of transistor counts: from flash memory to GPUs
  • Flash memory: Flash memory is a type of non-volatile memory that can store data even when the power is off. It is widely used in devices such as USB drives, memory cards, smartphones, and solid-state drives. One example of a flash memory chip is Micron’s V-NAND chip, which has a staggering 5.3 trillion transistors on a stacked package of sixteen 232-layer 3D NAND dies. It has a process node of 176 nm and a density of 3 bits per transistor. It can store up to 2 terabytes of data and has a fast read and write speed. It is used for high-capacity and high-performance storage applications.
  • Any processor: Any processor is a term used to describe a processor that can perform any computation on any data. It is also known as a general-purpose processor or a universal processor. One example of any processor is the Wafer Scale Engine 2 by Cerebras, which has an astonishing 2.6 trillion transistors on a wafer-scale design consisting of 84 exposed fields (dies). It has a process node of 7 nm and a density of 1.5 trillion transistors per square meter. It can perform up to 9 petaflops of computation and has a memory bandwidth of 20 petabytes per second. It is used for deep learning and artificial intelligence applications.
  • Microprocessor (commercial): A microprocessor is a type of any processor that is designed for personal computers and other consumer devices. It usually integrates multiple cores and other components on a single chip. One example of a microprocessor is the M1 Ultra by Apple, which has 114 billion transistors on a dual-die system on a chip (SoC), which is part of a multi-chip module. It has a process node of 5 nm and a density of 171 million transistors per square millimeter. It can run up to 3.2 GHz and has a thermal design power of 45 watts. It is used for high-end laptops and desktops.
  • GPU: A GPU is a type of specialized processor that is designed for graphics processing and rendering. It usually has many parallel cores that can handle large amounts of data simultaneously. One example of a GPU is the Nvidia H100, which has 80 billion transistors on a single chip. It has a process node of 4 nm and a density of 113 million transistors per square millimeter. It can deliver up to 165 teraflops of performance and has a memory bandwidth of 1.6 terabytes per second. It is used for gaming, virtual reality, and supercomputing applications.

These are just some examples of computer chips with different transistor counts. As we can see, the transistor count varies depending on the type, size, and purpose of the chip. However, they all share the common goal of increasing the functionality and performance of the chip while reducing the cost and power consumption per transistor.

Conclusion


In this article, we have explored the trend of increasing transistor count in computer chips, the technical factors and challenges that affect this trend, and some examples of different types and sizes of computer chips with varying transistor counts. We have seen that transistor count is a measure of the complexity and capability of a computer chip, and that it has been growing exponentially for decades following Moore’s law. We have also seen that increasing transistor count requires a combination of scaling, stacking, and specialization techniques, each with its own advantages and disadvantages. Finally, we have seen that transistor count varies depending on the type, size, and purpose of the chip, but they all share the common goal of increasing the functionality and performance of the chip while reducing the cost and power consumption per transistor.

Transistor count is a fascinating topic that reflects the innovation and progress of the semiconductor industry and computing technology. It is also a topic that has implications for various fields and applications, such as storage, artificial intelligence, gaming, virtual reality, and supercomputing. As the physical limits and engineering challenges become more severe, it remains to be seen how long the trend of increasing transistor count can continue, and what new materials, structures, and innovations can emerge to extend or redefine it.

FAQs


Q: What is a transistor?

A: A transistor is a tiny semiconductor device that acts as a switch or an amplifier in electronic circuits.

Q: How many transistors are typically found in a computer chip?

A: The number of transistors in a computer chip varies widely depending on the chip’s complexity and purpose. The latest processors can have billions of transistors.

Q: What is the function of transistors in a computer chip?

A: Transistors play a vital role in a computer chip by controlling the flow of electricity, enabling computations and data storage.

Q: How has the number of transistors in computer chips evolved over time?

A: The number of transistors in computer chips has increased significantly over the years, following Moore’s Law, which predicts that the number of transistors on a chip will double roughly every two years.

Q: Why is the number of transistors in computer chips important?

A: The number of transistors in a computer chip is a critical factor in determining the chip’s processing power and capabilities. As the number of transistors increases, the chip can perform more calculations and store more data, enabling faster and more complex computing tasks.
