Brushless electric motors (BLDC) have become the preferred solution in areas that require high efficiency, reliability, and control accuracy, such as electric vehicles, drones, factory automation, and cooling fans in telecommunications infrastructure.
But how can brushless electric motors be controlled with precision?
This guide will explain the basic concepts, control methods, main components, and how to purchase reliable replacement parts for BLDC motor systems.
🚗 Why choose BLDC motors?
Unlike brushed motors, BLDC motors do not use physical brushes to change direction. Instead, they use electronic conversion technology, which gives them the following advantages:
- ✅ Higher durability (brushes do not wear out)
- ✅ Higher efficiency
- ✅ Quieter operation
- ✅ More suitable for compact and high-speed applications
Common areas of application:
- Automobiles: electric control systems, air conditioning systems, electric bicycle motors
- Aerospace: propulsion units, unmanned aerial vehicle propulsion systems
- Telecommunications: highly reliable cooling fans
- Consumer electronics: robots, drones, vacuum cleaners
Want to buy BLDC motor control components from a certified supplier? Visit DRex Electronics.
Basic components for BLDC motor control
BLDC motor control requires several basic components:
- Microcontroller/processor
- PWM signal generation and switching logic
- In complex systems, it is possible to replaceFPGA or SoC

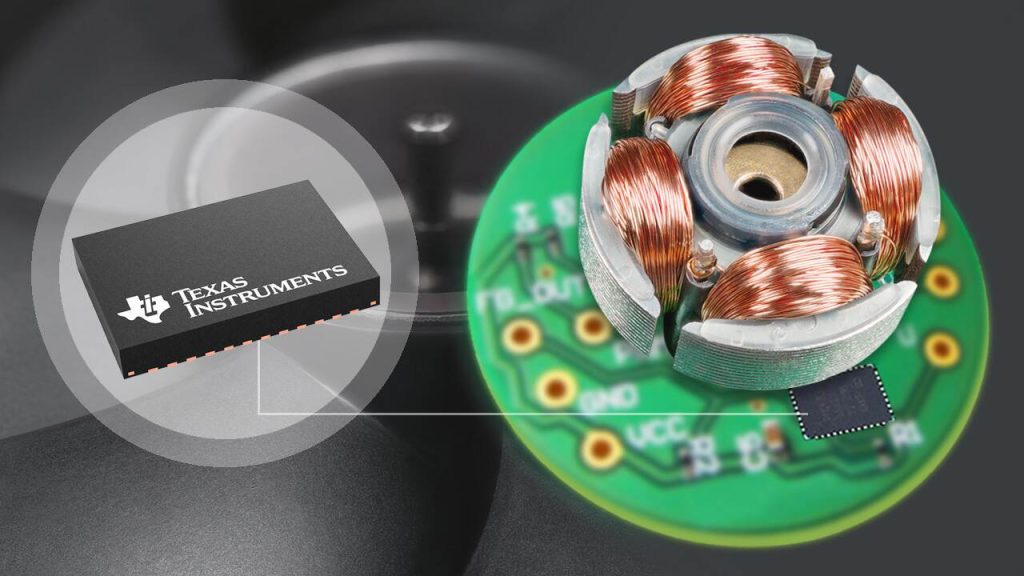

- Motor driver or motor gate IC
- MOSFET for motor coil control
- Example: Texas Instruments DRV8305 (external)
- MOSFET or IGBT
- as switching element
- Select MOSFET with low R<sub>DS(on)</sub> to increase efficiency
- Position feedback system
- Hall sensor or sensorless control based on opposing electric forces
- In more advanced systems, an encoder can be used
🔗 Browse DRex to find motor control circuits and integrated motors suitable for high-performance applications.
🔄 BLDC motor control methods
There are two main methods of controlling BLDC motors:
1. Sensor-based control (Hall effect sensor)
Principle of operation:
- A Hall effect sensor detects the position of the rotor
- The control device activates the corresponding coils in sequence according to this information.
Advantages
- High accuracy and reliability at low speeds
- Simple implementation
- Suitable for automotive and industrial systems
Disadvantages
- Higher costs and complexity
- Sensor failure can cause system malfunction
2. Control without sensor (detection of opposing electrical force)
Principle of operation
- The control element monitors the opposing electrical force (voltage sensed in the coil without power supply) to determine the position of the rotor
Advantages
- No physical sensors required
- Lower cost and more compact design
- Suitable for fans, pumps, and unmanned aerial vehicles
Disadvantages
- Difficult control at zero or low speeds
- Requires precise algorithm tuning
💡 Sensorless BLDC control is typically performed in DSP and SoC — available from DRex Electronics.
🔌 Control algorithm: the essence of the system
BLDC motor control algorithms from basic to advanced. The classification is shown below:
Algorithm description Best applications
Direction change in six steps Simple coil switching in 60-degree steps Basic motor and fan
Field-oriented control (FOC) Use of mathematical conversion (Clarke & Park) to control torque and speed Highly efficient electric vehicles, robots
T-shape control Simpler than FOC, suitable for designs without sensitive sensors in household appliances
📘 Infineon’s guide to motor control (external link) Provides more detailed guidance on algorithm selection.
💼 Examples of practical applications
✅ HVAC systems for cars
Brushless DC motors drive HVAC fans for smooth control and low noise. Sensorless control with speed feedback ensures temperature accuracy and passenger comfort.
✅ Telecommunications infrastructure cooling
Brushless DC fans in base stations are controlled using PWM. Reliability is extremely important, so MOSFETs with thermal protection and fault feedback are essential.
✅ Aircraft drives
Brushless constant current motors control wings, doors, and robotic mechanisms. Backup feedback and fault-tolerant motors are extremely important for critical tasks.
Need help finding a motor control circuit or a custom solution for your application? Contact DRex Electronics today.
🧩 Component checklist
When designing BLDC control systems, the following factors must be taken into account:
- ✅ Motor voltage and current classes
- ✅ Required control algorithm (step, FOC, etc.)
- ✅ Sensor or sensorless design
- ✅ Microcontroller compatibility
- ✅ Thermal performance and printed circuit board (PCB) design
- ✅ Component availability and lifetime
DRex Electronics offers long-life products and hard-to-find components for OEM customers in key industries.
🌍 Why engineers choose DRex Electronics
As a global distributor of electronic components, DRex Electronics does not just supply components. We offer:
- 📦 Access to high-quality integrated circuits and electric motors
- 🌐 Global purchasing and competitive prices
- ✅ ISO 9001-certified process
- 🧠 Expert technical advice for complex motion control applications
Whether you need FPGAs, MOSFETs, DSPs, or gate drivers, we are your partner for purchasing BLDC control components.
🔚 Conclusion: Control your motion system
Controlling brushless DC motors is not complicated. Thanks to a smart design, reliable components and proven algorithms, you can achieve precise motion, energy savings and quiet operation in any industry.
🛒 Are you ready to build or upgrade your BLDC motion control system?
