As embedded systems continue to grow in complexity and scale, many OEMs and system architects turn to Complex Programmable Logic Devices (CPLDs) for their deterministic behavior, low power consumption, and flexibility. One standout in this category is the ATF1508AS-15QI100 from Microchip Technology (formerly Atmel) — a high-density, high-speed CPLD that balances performance with cost-effectiveness.
In this article, we’ll explore the technical specifications, real-world applications, and sourcing options for the ATF1508AS-15QI100 — and how DRex Electronics supports OEMs with reliable, global access to critical programmable logic devices.
What is the ATF1508AS-15QI100?

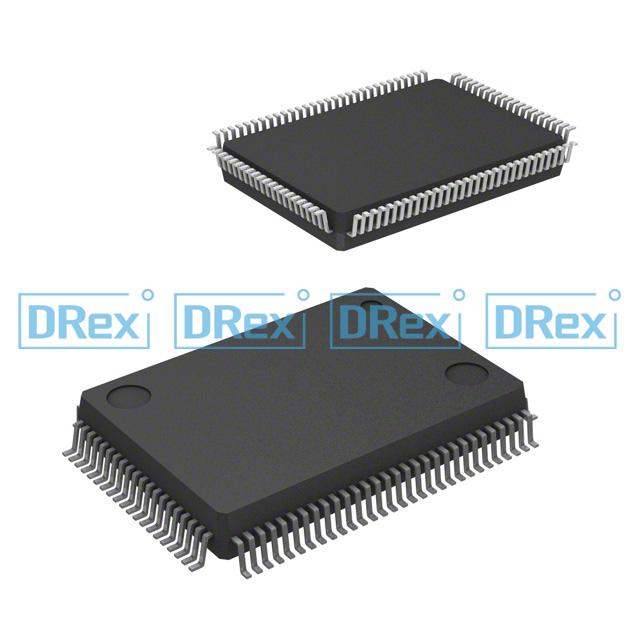

The ATF1508AS-15QI100 is a low-power, high-speed CPLD (Complex Programmable Logic Device) based on EEPROM technology, designed to provide high-performance programmable logic for demanding embedded applications.
Manufactured by Microchip Technology, it offers high pin count, multiple logic blocks, and pin-locking capabilities, making it ideal for large-scale applications that require flexible yet predictable digital logic design.
✅ Explore more programmable logic components at DRex:
View CPLDs and PLDs
Key Technical Specifications
Here is a concise breakdown of the ATF1508AS-15QI100 technical data:
| Feature | Specification |
|---|---|
| Logic Macrocells | 128 macrocells |
| Usable Gates | Approx. 8,000 gates |
| tPD (Propagation Delay) | 15 ns |
| tS (Setup Time) | 8.5 ns |
| tH (Hold Time) | 0 ns |
| Memory Type | EEPROM (electrically erasable) |
| I/O Pins | 84 I/O pins |
| Package | 100-pin PQFP (Plastic Quad Flat Package) |
| Power Supply Voltage | 5V ±10% |
| Programming Interface | JTAG-compatible |
| Standby Current | 50 µA typical |
| Temperature Range | -40°C to +85°C (Industrial Grade) |
📄 Access full technical documentation:
ATF1508AS-15QI100 Datasheet – Microchip
Why Choose the ATF1508AS-15QI100?
✅ High Logic Density in a Compact Package
With 128 macrocells and up to 8,000 usable gates, the ATF1508AS is ideal for logic-intensive applications that previously required multiple smaller CPLDs or low-end FPGAs.
✅ Zero Power-on Configuration Delay
Unlike SRAM-based FPGAs that require an external configuration memory and boot time, this EEPROM-based CPLD has instant-on capabilities, making it perfect for mission-critical and deterministic systems.
✅ In-System Programmability (ISP)
Supports JTAG-based in-system programming, which simplifies firmware updates and debugging during development and field operation — a significant benefit for OEMs with long product life cycles.
✅ Industrial-Grade Reliability
Its operating temperature range from -40°C to +85°C ensures stable performance in harsh environments such as automotive engine control, aerospace subsystems, or outdoor telecom cabinets.
Application Areas of ATF1508AS-15QI100
1. Automotive Electronics
-
In-vehicle communication interfaces (e.g., LIN/CAN/Gateway bridging)
-
Lighting control modules
-
ECU (Electronic Control Unit) logic integration
2. Industrial Automation
-
PLC input/output expansion
-
Real-time machine logic sequencing
-
Safety-critical control applications
3. Aerospace & Defense
-
Signal conditioning logic
-
Communication protocol translation
-
Secure and redundant logic design
4. Telecommunications
-
Interface logic in base stations
-
Timing and clock signal management
-
Custom glue logic in embedded systems
CPLDs vs. FPGAs: When to Use ATF1508AS-15QI100?
While FPGAs offer higher logic densities, CPLDs like the ATF1508AS-15QI100 provide several key benefits:
| Feature | CPLDs (ATF1508AS-15QI100) | FPGAs |
|---|---|---|
| Startup Time | Instant-on | Requires configuration time |
| Power Consumption | Lower | Higher |
| Complexity | Simpler, predictable logic design | More complex |
| Ideal Use Case | Control, decoding, interfacing | Data processing, high-speed I/O |
Learn more about FPGAs and programmable logic devices available at DRex Electronics.
Sourcing the ATF1508AS-15QI100 from DRex Electronics
As a trusted global distributor of advanced electronic components, DRex Electronics simplifies the sourcing of parts like the ATF1508AS-15QI100 for OEMs and large-scale manufacturers.
With DRex, You Get:
-
🔧 Access to hard-to-find and legacy components
-
🚀 Fast global shipping with verified logistics networks
-
📦 Bulk order and inventory management support
-
🔍 Counterfeit protection and ISO 9001-certified quality assurance
💡 Looking for legacy programmable logic or end-of-life parts?
Contact DRex Electronics for component matching and obsolescence support.
Related Products and Alternatives
If you’re designing with the ATF1508AS-15QI100, you might also consider:
-
Xilinx XC9500 Series CPLDs (External link)
-
Lattice Semiconductor CPLDs (Internal link)
For FPGA alternatives with higher logic density:
Conclusion
The ATF1508AS-15QI100 remains a reliable and high-performance CPLD choice for embedded applications requiring deterministic operation, quick start-up, and long product life cycles. Whether you’re integrating glue logic in automotive modules or building scalable industrial systems, this Microchip CPLD offers unmatched flexibility and robustness.
At DRex Electronics, we help engineers and procurement professionals access the components they need — when they need them — with confidence and speed.
