Introduction

The knock sensor may not be well-known, but it is one of the most important components under the hood of your car. This small yet important device helps your engine run smoothly and efficiently by detecting and preventing engine detonation (also known as detonation or knocking). We will explain what a knock sensor is, its working principle, why it is important for engine performance.



What is a Knock Sensor?

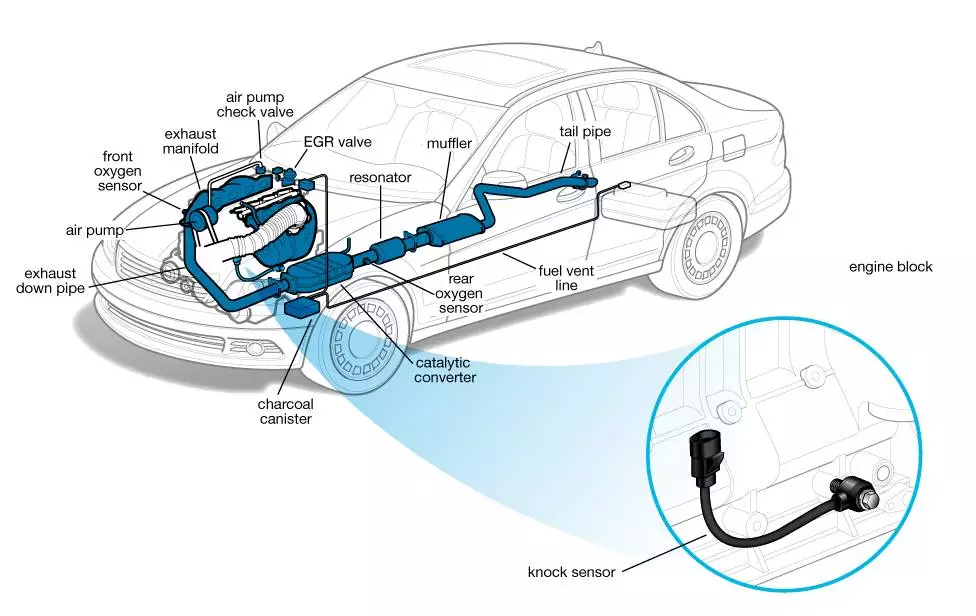

A knock sensor is a device used to monitor engine knock, which is an unwanted vibration caused by abnormal combustion. If not detected and corrected in a timely manner, detonation may lead to serious damage. After detecting this vibration, the detonation sensor sends a signal to the engine control unit (ECU), which then adjusts the ignition timing of the engine to prevent further detonation.

1415724412057

The Working Principle of Knock Sensors

1. Detection: The detonation sensor contains piezoelectric components that generate voltage when detecting engine vibration. These vibrations occur at specific frequencies during detonation.

2. Signal transmission: The sensor sends a signal to the ECU, providing information about the intensity and frequency of detonation.

3. Timing adjustment: The ECU processes the signal and adjusts the ignition timing or fuel mixture ratio to prevent detonation.



Why Are Knock Sensors Important?

1. Engine efficiency: The knock sensor allows the engine to run at its optimal ignition timing, thereby improving fuel efficiency.

2. Engine lifespan: By preventing detonation, sensors reduce the risk of engine damage and extend engine lifespan.

3. Reducing emissions: Correct engine timing leads to complete combustion, reducing emissions.

00638-2896901030

Signs of a Faulty Knock Sensor

1. Check that the engine light is on: The most common sign is that the check engine light is on, usually accompanied by diagnostic trouble codes (DTC).

2. Poor performance: decreased power, unstable idle, and poor acceleration may all indicate a problem.

3. Fuel consumption increases: If the sensor fails to function properly, the ECU may switch to a conservative timing mode, resulting in higher fuel consumption.



Types of Knock Sensors

1. Piezoelectric Detonation Sensor

  • Feature: Using piezoelectric components to detect detonation vibration.
  • Application: Commonly used in various gasoline engines.

2. Resonant Frequency Knock Sensor

  • Feature: Tune to detect specific frequencies related to engine detonation.
  • Application: Very suitable for engines that are prone to specific detonation frequencies.



Conclusion

Knock sensors play a vital role in optimizing engine performance and preventing costly damage. Understanding their function and importance can help you make better decisions when purchasing components. For high-quality knock sensors, contact DRex Electronics and take advantage of our extensive product range and industry expertise.
