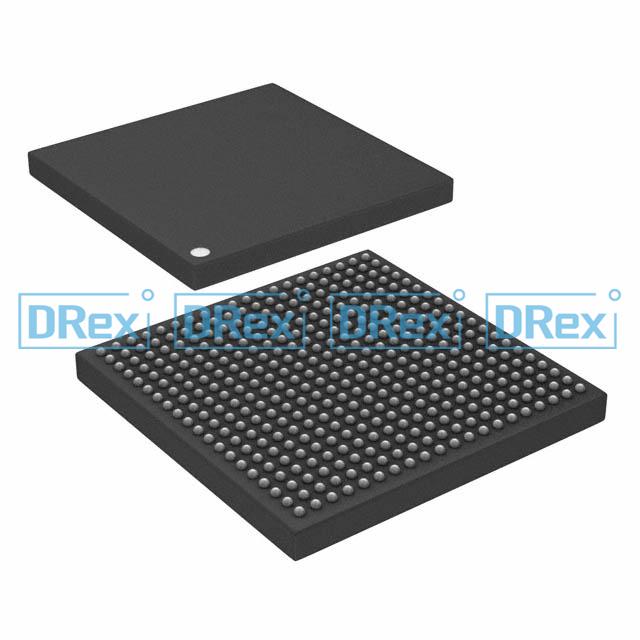

The M2S025-VFG400I is a part of Microchip’s SmartFusion®2 SoC FPGA family, engineered for secure, low-power, and highly integrated embedded solutions. With its built-in ARM Cortex-M3 processor, flash-based FPGA fabric, and industrial-grade reliability, it is ideal for applications that require a strong combination of performance, security, and flexibility.
This device is especially well-suited for industrial control systems, automotive safety modules, defense electronics, and secure networking equipment.
🔧 Technical Specifications – M2S025-VFG400I
|
Specification |
Description |
|
Product Series |
SmartFusion®2 SoC FPGA |
|
Part Number |
M2S025-VFG400I |
|
Logic Elements (LEs) |
23,000 |
|
Core Processor |
ARM® Cortex®-M3 @ 166 MHz |
|
On-Chip Memory |
512 KB Flash, 64 KB SRAM |
|
Package |
VFG400 (400-ball Fine-Pitch BGA) |
|
I/O Count |
Up to 248 I/O pins |
|
I/O Standards |
LVCMOS, HSTL, SSTL, LVDS, PCI |
|
Configuration |
Non-volatile Flash-based, Instant-on |
|
Security Features |
DPA Protection, PUF-based Key Storage, Secure Boot, Anti-Tamper Monitoring |
|
Temperature Range |
–40°C to +100°C (Industrial Grade) |
🔗 View datasheet on Microchip
🌟 Key Features of the M2S025-VFG400I
- ✅ Non-volatile Flash-based FPGA fabric (no need for external configuration memory)
- ✅ Integrated ARM Cortex-M3 processor for real-time application control
- ✅ Instant-on operation — no boot delays
- ✅ Class-leading security features like Secure Boot and Physical Unclonable Function (PUF)
- ✅ Low static and dynamic power consumption
- ✅ Wide industrial temperature support (perfect for harsh environments)
🏭 Application Use Cases
- Industrial Automation and Control Systems
Industrial control panels and PLCs require reliable and deterministic logic.
- M2S025-VFG400I enables real-time control loops
- Supports various I/O expansion buses (SPI, UART, CAN, I2C)
- Low power allows for use in battery-powered controllers
🔗 See industrial-grade processors and FPGAs from DRex Electronics
- Automotive Electronics
With its secure boot and robust temperature tolerance, this FPGA SoC is well-suited for:
- ADAS systems (Advanced Driver Assistance Systems)
- Vehicle control units (lighting, steering, braking)
- Infotainment firewalls and secure communication modules
The –I suffix denotes Industrial temperature range, essential for automotive-grade applications.
- Secure Networking and Edge Devices
Cybersecurity threats make secure SoCs a necessity in connected systems.
- Built-in DPA (Differential Power Analysis) resistance
- True Random Number Generator (TRNG) and hardware crypto engines
- Secure identity with PUF (Physically Unclonable Function)-based key storage
Use in:
- Firewalls, VPN gateways
- Secure IoT edge nodes
- Encrypted sensor networks
- Aerospace and Defense
Harsh environments demand rugged hardware.
- Flash configuration allows instant-on after reset
- Built-in tamper detection and secure erase
- Use cases include secure telemetry, flight systems, missile electronics
🛠️ Development Tools and Ecosystem
Software Tools
- Libero® SoC Design Suite for FPGA development and IP integration
- Support for Keil MDK-ARM, IAR Embedded Workbench for Cortex-M3 software development
- On-chip JTAG debug interface
🔗 Download Libero SoC Suite
Evaluation Boards
Develop faster with Microchip’s dev kits:
- SmartFusion®2 Evaluation Kit
- Includes: Ethernet, USB, DDR3, GPIO, and expansion headers
- Supports device configuration, debugging, and secure boot testing
🔗 SmartFusion2 Starter Kit – Microchip
🔍 Comparing Related Devices
|
Part Number |
Logic Elements |
Package |
Key Feature |
|
M2S005-FG484 |
5,000 |
FG484 |
Entry-level SmartFusion2 |
|
M2S025-VFG400I |
23,000 |
VFG400 |
Mid-range with security & I/O |
|
M2S050TS-FCG484I |
50,000 |
FCG484 |
High-performance variant |
Browse more SoC FPGAs at DRex Electronics.
🤝 Why Source M2S025-VFG400I from DRex Electronics?
DRex Electronics is a global supplier of advanced electronic components tailored for OEMs in industrial, aerospace, automotive, and telecom sectors.
What We Offer:
- ✅ ISO 9001:2015–certified sourcing process
- ✅ Verified stock for Microchip SoC FPGAs
- ✅ Component matching, BOM support, and secure logistics
- ✅ Quick fulfillment and anti-counterfeit safeguards
- ✅ Professional support for legacy and high-spec components
📦 Request a quote or datasheet for M2S025-VFG400I now.
📚 Additional Resources
- 🔗 SmartFusion2 Product Page – Microchip
- 🔗 Secure Embedded Systems Design – EE Times
- 🔗 Understanding PUF Technology – Rambus
✅ In Summary
The M2S025-VFG400I is a robust and secure SmartFusion®2 SoC FPGA tailored for industrial and embedded applications. With a hardened ARM Cortex-M3 processor, rich I/O capabilities, and instant-on flash configuration, it serves as a trusted building block in systems where security and uptime are non-negotiable.
For sourcing, support, or volume pricing, get in touch with DRex Electronics today.
