Electronic components are the building blocks of any electronic device or system. They perform various functions such as amplifying signals, storing data, switching currents, converting voltages, and more. Electronic components can be classified into two main categories: active and passive. Active components require external power to operate, such as transistors, diodes, LEDs, and integrated circuits (ICs). Passive components do not require external power, such as resistors, capacitors, inductors, and transformers.

Testing electronic components is a vital process for ensuring the quality, reliability, and safety of electronic products. Testing can help identify and eliminate defects, errors, and failures that may affect the performance or functionality of the components or the whole system. Testing can also help verify that the components meet the specifications and standards required by the design or the customer.

Testing electronic components can be done in different stages of the product lifecycle, such as during research and development (R&D), pre-sale, software, OEM platform, industrial/manufacturing, and certification testing. Testing can also be done for different purposes, such as debugging, troubleshooting, optimizing, validating, or verifying.

There are various methods and tools for testing electronic components, depending on the type, nature, and function of the component. Some of the common methods and tools are:

  • Visual inspection: This involves checking the physical appearance and condition of the component for any obvious defects or damages, such as cracks, chips, burns, or missing parts. This can be done manually or with the help of a magnifying glass or a microscope.
  • Multimeter: This is a device that can measure various electrical parameters of a component, such as voltage, current, resistance, continuity, capacitance, frequency, etc. A multimeter can be analog or digital and can have different modes and ranges for different measurements.
  • Component tester: This is a device that can automatically identify and test various types of components by applying signals and measuring responses. A component tester can display the results on a screen or a speaker and can have different functions and features for different components.
  • LCR meter: This is a device that can measure the inductance (L), capacitance ©, and resistance ® of a component. An LCR meter can also measure other parameters such as quality factor (Q), dissipation factor (D), impedance (Z), phase angle (θ), etc.
  • IC tester: This is a device that can test integrated circuits (ICs) by applying inputs and verifying outputs. An IC tester can have different sockets and adapters for different types of ICs and can have different modes and functions for different tests.

By the end of this article, you will have a better understanding of how to test electronic components effectively and efficiently. You will also learn some best practices and tips from industry experts. So let’s get started!

Testing Methods


In this section, we will describe how to use the various methods and tools for testing electronic components and what they measure. We will also explain the advantages and disadvantages of each method and tool.

Visual Inspection

Visual inspection is the simplest and most basic method of testing electronic components. It involves checking the physical appearance and condition of the component for any obvious defects or damages, such as cracks, chips, burns, or missing parts. This can be done manually or with the help of a magnifying glass or a microscope.

Visual inspection can help identify some common problems, such as:

  • Broken or loose leads or pins
  • Corrosion or oxidation of terminals or contacts
  • Discoloration or deformation of casing or coating
  • Leakage or bulging of electrolytic capacitors
  • Cracks or breaks in ceramic capacitors or resistors
  • Signs of overheating or burning in resistors, diodes, transistors, etc.

However, visual inspection has some limitations, such as:

  • It cannot detect internal faults or defects that are not visible from the outside
  • It cannot measure the electrical parameters or functionality of the component
  • It can be subjective and prone to human error

Therefore, visual inspection should be used as a preliminary screening method and should be followed by more accurate and reliable methods and tools.

Multimeter

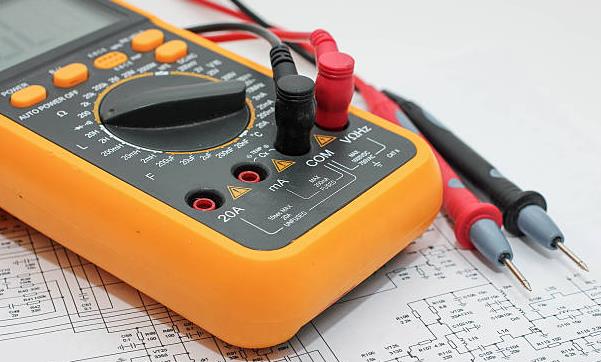

A multimeter is a device that can measure various electrical parameters of a component, such as voltage, current, resistance, continuity, capacitance, frequency, etc. A multimeter can be analog or digital and can have different modes and ranges for different measurements.

multimeter
multimeter

A multimeter can help test some common components, such as:

  • Resistors: By measuring their resistance value and comparing it with the color code or the specification
  • Capacitors: By measuring their capacitance value and checking for shorts or opens
  • Diodes: By measuring their forward and reverse voltage drop and checking for shorts or opens
  • LEDs: By measuring their forward voltage drop and checking if they light up
  • Transistors: By measuring their base-emitter and base-collector junctions and checking for shorts or opens

However, a multimeter also has some limitations, such as:

  • It cannot measure inductance, quality factor, dissipation factor, impedance, phase angle, etc.
  • It cannot test integrated circuits (ICs) or complex circuits
  • It can be affected by stray capacitance, resistance, or inductance in the circuit
  • It can damage sensitive components if used with improper settings or polarity

Therefore, a multimeter should be used with caution and care and should be complemented by other methods and tools.

Component Tester

A component tester is a device that can automatically identify and test various types of components by applying signals and measuring responses. A component tester can display the results on a screen or a speaker and can have different functions and features for different components.

Component Tester
Component Tester

A component tester can help test some common components, such as:

  • Resistors: By displaying their resistance value and tolerance
  • Capacitors: By displaying their capacitance value, equivalent series resistance (ESR), leakage current, etc.
  • Diodes: By displaying their forward voltage drop, reverse breakdown voltage, etc.
  • LEDs: By displaying their forward voltage drop and lighting them up
  • Transistors: By displaying their type (NPN or PNP), pinout (base, emitter, collector), current gain (hFE), etc.
  • Inductors: By displaying their inductance value, quality factor (Q), etc.

However, a component tester also has some limitations, such as:

  • It cannot test integrated circuits (ICs) or complex circuits
  • It may not be able to identify some uncommon or rare components
  • It may not be able to test some parameters that are not supported by the device

Therefore, a component tester should be used as a convenient and quick method and should be verified by other methods and tools.

LCR Meter

An LCR meter is a device that can measure the inductance (L), capacitance ©, and resistance ® of a component. An LCR meter can also measure other parameters such as quality factor (Q), dissipation factor (D), impedance (Z), phase angle (θ), etc.

An LCR meter can help test some common components, such as:

  • Resistors: By measuring their resistance value and tolerance
  • Capacitors: By measuring their capacitance value, equivalent series resistance (ESR), dissipation factor (D), etc.
  • Inductors: By measuring their inductance value, quality factor (Q), equivalent series resistance (ESR), etc.

However, an LCR meter also has some limitations, such as:

  • It cannot test diodes, LEDs, transistors, ICs, or complex circuits
  • It may not be able to measure some parameters that are not supported by the device
  • It may be affected by stray capacitance, resistance, or inductance in the circuit

Therefore, an LCR meter should be used as a precise and accurate method and should be calibrated and adjusted properly.

IC Tester

An IC tester is a device that can test integrated circuits (ICs) by applying inputs and verifying outputs. An IC tester can have different sockets and adapters for different types of ICs and can have different modes and functions for different tests.

An IC tester can help test some common ICs, such as:

  • Logic gates: By applying logic levels (high or low) to the inputs and verifying the outputs according to the truth table
  • Flip-flops: By applying clock pulses and data signals to the inputs and verifying the outputs according to the state diagram
  • Counters: By applying clock pulses to the inputs and verifying the outputs according to the counting sequence
  • Multiplexers: By applying data signals and select signals to the inputs and verifying the outputs according to the switching function
  • Demultiplexers: By applying data signals and select signals to the inputs and verifying the outputs according to the switching function

However, an IC tester also has some limitations, such as:

  • It cannot test analog ICs or complex ICs
  • It may not be able to identify some uncommon or rare ICs
  • It may not be able to test some functions that are not supported by the device

Therefore, an IC tester should be used as a specific and specialized method and should be matched with the correct type of IC.

Testing Procedures


Testing electronic components is not only about using the right methods and tools, but also about following the correct procedures. Different types of components require different testing procedures to ensure their quality and functionality. In this section, we will provide step-by-step instructions for testing some of the most common electronic components, such as resistors, capacitors, transistors, diodes, LEDs, etc. We will also include some tips and tricks for identifying faults and troubleshooting problems.

How to Test Resistors

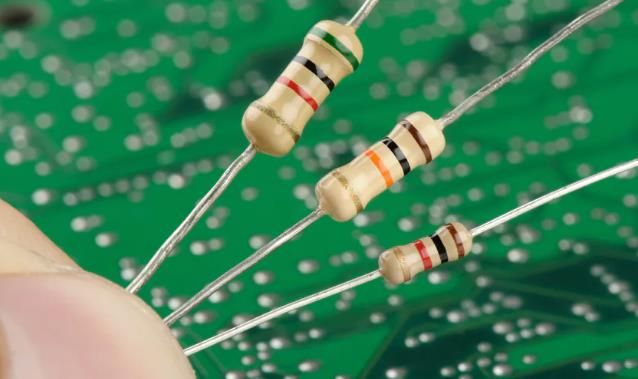

Resistors are passive components that limit the flow of current in a circuit. They have a fixed or variable resistance value that is measured in ohms (Ω). To test resistors, you will need a multimeter that can measure resistance.

How to Test Resistors
How to Test Resistors
  • Step 1: Turn off the power supply and disconnect the resistor from the circuit. If the resistor is soldered to a board, you may need to desolder it or use test clips to connect it to the multimeter probes.
  • Step 2: Set the multimeter to the resistance mode (Ω) and choose a suitable range that covers the expected value of the resistor. For example, if the resistor has a color code of brown-black-red-gold, which means 1kΩ ± 5%, you can choose the 2kΩ range on your multimeter.
  • Step 3: Touch the multimeter probes to the resistor terminals and read the resistance value on the display. If the value is within the tolerance range of the resistor, it means it is working properly. If the value is too high or too low, it means the resistor is faulty or damaged. If the value is zero or infinity, it means there is a short circuit or an open circuit in the resistor.

How to Test Capacitors

Capacitors are passive components that store electric charge and release it when needed. They have a capacitance value that is measured in farads (F) or its subunits, such as microfarads (µF) or picofarads (pF). To test capacitors, you will need a multimeter that can measure capacitance or a capacitor tester.

How to Test Capacitors
How to Test Capacitors
  • Step 1: Turn off the power supply and discharge the capacitor by shorting its terminals with a wire or a screwdriver. Be careful not to touch the terminals with your fingers as some capacitors may store high voltage even after being disconnected from the circuit.
  • Step 2: Set the multimeter to the capacitance mode (F) and choose a suitable range that covers the expected value of the capacitor. For example, if the capacitor has a label of 100µF 16V, you can choose the 200µF range on your multimeter.
  • Step 3: Touch the multimeter probes to the capacitor terminals and read the capacitance value on the display. If the value is within 10% of the labeled value, it means it is working properly. If the value is too high or too low, it means the capacitor is faulty or damaged. If the value is zero or infinity, it means there is a short circuit or an open circuit in the capacitor.

Testing Standards


Testing electronic components is not only about following the right procedures but also about complying with the relevant standards and regulations. These standards and regulations ensure the quality, reliability, and safety of electronic products and protect consumers and the environment from potential hazards. In this section, we will discuss some of the most important standards and regulations for testing electronic components, such as ISO, IEC, ANSI, etc. We will also explain how they are developed, implemented, and verified.

Testing standards and regulations have different purposes and scopes. Some of them are mandatory and legally binding, while others are voluntary and advisory. Some of them apply to specific types of components, products, or industries, while others are more general and cross-sectoral. Some of them focus on the performance or functionality of components, while others address the environmental or social aspects of components.

ISO/IEC 17025
ISO/IEC 17025

Some examples of testing standards and regulations for electronic components are:

  • ISO/IEC 17025: General requirements for the competence of testing and calibration laboratories. This standard specifies the criteria for the technical competence, impartiality, and quality management of laboratories that perform testing and calibration of electronic components. It is applicable to any type of laboratory, regardless of its size or scope of activities. It is widely recognized and accepted by accreditation bodies and regulators around the world.
  • IEC 60068: Environmental testing. This series of standards defines the methods and procedures for testing electronic components under various environmental conditions, such as temperature, humidity, vibration, shock, corrosion, etc. It also provides guidance on how to select appropriate test methods and parameters for different types of components and applications. It is applicable to any type of electronic component that may be exposed to environmental stress during its service life.
  • ANSI/ESD S20.20: Protection of electrical and electronic parts, assemblies and equipment (excluding electrically initiated explosive devices). This standard establishes the requirements for the design, implementation, and maintenance of an electrostatic discharge (ESD) control program for electronic components that are sensitive to ESD damage. It covers the principles of ESD control, such as grounding, personnel grounding, ionization, packaging, handling, storage, transportation, etc. It is applicable to any type of organization that deals with ESD-sensitive components in its operations.

How are Testing Standards and Regulations Verified?

Testing standards and regulations are verified by different methods and entities, depending on their nature and scope. Some of the common ways to verify testing standards and regulations are:

  • Accreditation: This is a process of formal recognition by an authoritative body that a testing laboratory or an organization meets the requirements of a specific standard or regulation. Accreditation provides confidence and credibility to the testing results and reports issued by the accredited entity. Accreditation bodies are usually national or international organizations that follow the guidelines of ISO/IEC 17011: General requirements for accreditation bodies accrediting conformity assessment bodies.
  • Certification: This is a process of issuing a certificate or a mark by a third-party organization that a product, service, system, or person conforms to a specific standard or regulation. Certification provides assurance and trust to the customers and the regulators that the certified entity meets the quality and safety criteria. Certification bodies are usually independent and impartial organizations that follow the guidelines of ISO/IEC 17065: Requirements for bodies certifying products, processes, and services.
  • Inspection: This is a process of examining, measuring, testing, or verifying a product, service, system, or person against a specific standard or regulation. The inspection provides evidence and feedback to the inspected entity about its compliance status and performance level. Inspection bodies are usually qualified and competent organizations that follow the guidelines of ISO/IEC 17020: Requirements for the operation of various types of bodies performing an inspection.
  • Self-declaration: This is a process of declaring by oneself that a product, service, system, or person conforms to a specific standard or regulation. Self-declaration provides flexibility and responsibility to the declaring entity to demonstrate its compliance without involving external parties. Self-declaration is usually done by following the guidelines of ISO/IEC 17050: Conformity assessment — Supplier’s declaration of conformity.

What to Do if Testing Standards and Regulations are Violated?

Testing standards and regulations are violated when a product, service, system, or person fails to meet the requirements or criteria specified by them. Violating testing standards and regulations can have serious consequences for both the violator and society, such as:

  • Legal actions: The violator may face lawsuits, fines, penalties, injunctions, recalls, bans, or criminal charges from the regulators, customers, competitors, or other stakeholders who are affected by the violation. The violator may also lose its reputation, credibility, market share, or license to operate in certain jurisdictions.
  • Safety risks: The violator may expose itself or others to potential hazards such as electric shocks, fires, explosions, injuries, illnesses, or deaths due to faulty or defective products or services.
  • Environmental impacts: The violator may cause pollution, contamination, degradation, or depletion of natural resources such as air, water, soil, flora, or fauna due to improper disposal or emission of electronic waste or substances.

To avoid violating testing standards and regulations, it is important to:

  • Know and understand the applicable standards and regulations for your products, services, systems, or personnel.
  • Follow the best practices and guidelines for testing electronic components according to the relevant standards and regulations.
  • Seek professional advice or assistance from accredited laboratories,

Testing Optimization


Testing electronic components is not only about complying with the relevant standards and regulations but also about optimizing the testing process and improving the performance of components. Optimization means finding the best possible solution for a given problem or goal, such as reducing the time, cost, or resources required for testing, or increasing the quality, reliability, or efficiency of components. In this section, we will suggest some ways to optimize the testing process and improve the performance of electronic components, such as using highly accelerated life testing (HALT) and stress screening (HASS), designing testable circuits, implementing design for testability (DFT) techniques, etc. We will also provide case studies and best practices from the industry.

How to Optimize the Testing Process?

Optimizing the testing process means finding the most effective and efficient way to test electronic components under various conditions and scenarios. Optimizing the testing process can help save time, money, and effort, as well as ensure the quality and reliability of components. Some of the common methods and techniques for optimizing the testing process are:

How to Optimize the Testing Process?
How to Optimize the Testing Process?
  • Reducing the size of test suites: Test suites are collections of test cases that are designed to verify the functionality or performance of components. Reducing the size of test suites means eliminating redundant, obsolete, or unnecessary test cases that do not add value to the testing process. This can help speed up the testing process and reduce the complexity and maintenance of test suites.
  • Creating a minimal subset of test suites: A minimal subset of test suites is a smaller set of test cases that can achieve the same testing objectives as a larger set of test cases. Creating a minimal subset of test suites means selecting the most relevant and critical test cases that cover the most important features or functions of components. This can help focus on the quality and reliability of components and reduce the risk of missing defects or errors.
  • Evaluating the optimal test coverage criteria: Test coverage is a measure of how well a test suite covers the functionality or performance of components. Test coverage criteria are the standards or metrics that are used to determine how much testing is enough or sufficient for a given component. Evaluating the optimal test coverage criteria means finding the balance between over-testing and under-testing components, based on factors such as requirements, specifications, risks, costs, etc. This can help ensure that all aspects of components are tested adequately and appropriately.
  • Increasing the maintainability of test cases: Test cases are sets of inputs, outputs, and expected results that are used to verify the functionality or performance of components. Increasing the maintainability of test cases means making them easy to create, update, modify, reuse, or delete as needed. This can help reduce errors, inconsistencies, or ambiguities in test cases and improve their readability and usability.
  • Using automated testing tools: Automated testing tools are software applications that can perform testing tasks automatically without human intervention. Using automated testing tools means replacing manual testing methods with automated ones whenever possible and feasible. This can help increase the speed, accuracy, and consistency of testing and reduce human errors, efforts, and costs. Some of the common automated testing tools are software applications that can perform testing tasks such as generating test cases, executing test cases, analyzing test results, reporting test outcomes, etc.
  • Using parallel testing techniques: Parallel testing techniques are methods that can run multiple test cases or test suites simultaneously on different devices, platforms, or environments. Using parallel testing techniques means reducing the total testing time by distributing the testing workload across multiple resources. This can help increase the test coverage and efficiency of testing and reduce the dependency and bottleneck of testing resources.

How to Improve the Performance of Electronic Components?

Improving the performance of electronic components means finding ways to enhance their functionality, efficiency, or reliability under various conditions and scenarios. Improving the performance of electronic components can help increase their lifespan, quality, and value, as well as reduce waste, emissions, or hazards. Some of the common methods and techniques for improving the performance of electronic components are:

How to Improve the Performance of Electronic Components?
How to Improve the Performance of Electronic Components?
  • Using highly accelerated life testing (HALT) and stress screening (HASS): HALT and HASS are testing methods that expose electronic components to extreme environmental conditions such as temperature, humidity, vibration, shock, etc. beyond their normal operating limits. Using HALT and HASS means identifying and eliminating the weak points or failure modes of components before they are deployed or used in real applications. This can help improve the robustness and durability of components and prevent premature failures or defects.
  • Designing testable circuits: Testable circuits are circuits that are designed with features or elements that facilitate or simplify testing. Designing testable circuits means incorporating testability aspects such as accessibility, observability, controllability, isolation, etc. into the circuit design process. This can help reduce the complexity and difficulty of testing and increase the testability and maintainability of circuits.
  • Implementing design for testability (DFT) techniques: DFT techniques are methods that modify or augment electronic components or circuits with additional hardware or software that enable or improve testing. Implementing DFT techniques means adding test points, scan chains, built-in self-test (BIST), boundary scan, etc. to the components or circuits. This can help increase the fault coverage and diagnosis of testing and reduce the test time and cost.
  • Using heat sinks or thermal management systems: Heat sinks or thermal management systems are devices or mechanisms that transfer or dissipate heat from electronic components to the surrounding medium. Using heat sinks or thermal management systems means reducing the temperature and thermal stress of components during operation. This can help improve the efficiency and reliability of components and prevent overheating or damage.

Conclusion


In this article, we have discussed the importance and methods of testing electronic components, as well as the ways to optimize the testing process and improve the performance of components. Thank you for reading this article. If you have any questions or feedback, please feel free to contact us. We would love to hear from you.

FAQs


Q: What is the purpose of testing electronic components?

A: Testing electronic components ensure their functionality, identifies faulty components and ensures the proper operation of electronic circuits and devices.

Q: What are the common tools needed for electronic component testing?

A: Common tools include a multimeter, oscilloscope, transistor tester, ESR meter, IC tester, and various testing probes and cables.

Q: How do I test a resistor?

A: Use a multimeter in resistance mode and measure the resistance across the resistor. Compare the reading with the expected resistance value to determine its functionality.

Q: How can I test a diode?

A: Use a multimeter’s diode mode. Connect the diode to the multimeter, and it will indicate whether the diode is functioning correctly by displaying the forward voltage drop.

Q: What methods can I use to test capacitors?

A: Capacitors can be tested using a capacitance meter or multimeter in capacitance mode. Verify if the measured capacitance value falls within the specified range.

Q: How do I test a transistor?

A: Utilize a transistor tester or multimeter with a transistor testing function. Confirm the pinout, gain, and functionality of the transistor according to the provided readings.

Q: Can I test integrated circuits (ICs) without specialized equipment?

A: Yes, you can test ICs by observing their behavior within a circuit using an oscilloscope or logic analyzer. However, dedicated IC testers provide more comprehensive testing capabilities.

Q: What should I do if a component fails the test?

A: If a component fails the test, it is likely faulty and should be replaced. Refer to the component datasheet or consult an expert for further troubleshooting and replacement options.
