In the embedded world, performance and scalability are often critical—especially in systems requiring rich multimedia, real-time control, and connectivity. The MCIMX6G2CVM05AB, part of NXP’s i.MX 6 series, is a feature-rich ARM® Cortex®-A9 based application processor built to meet these demanding requirements.
With its dual-core architecture, extensive I/O, and multimedia capabilities, the MCIMX6G2CVM05AB is an excellent choice for developers building graphical HMIs, IoT edge devices, and connected industrial control units.
At DRex Electronics, we provide reliable sourcing for high-performance application processors like the MCIMX6G2CVM05AB, ensuring your designs stay on track and on budget.
What is the MCIMX6G2CVM05AB?

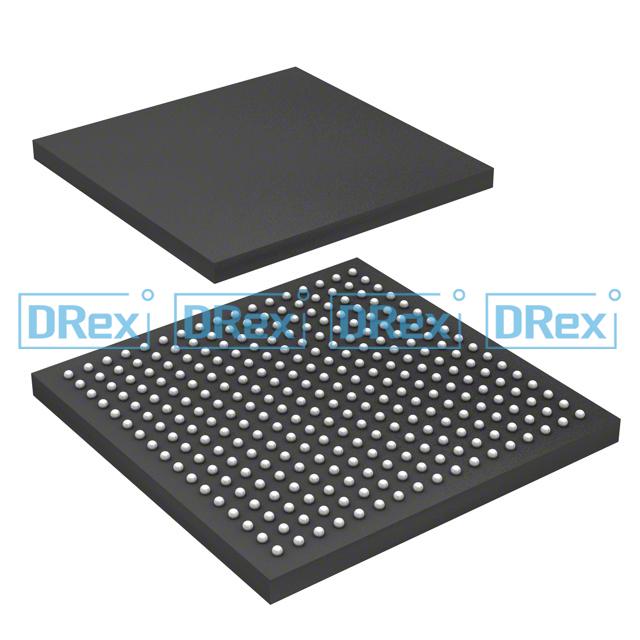

The MCIMX6G2CVM05AB is a member of the i.MX 6DualLite family, built on a dual-core ARM Cortex-A9 architecture running at up to 800 MHz. It offers a balanced combination of multimedia processing, secure boot, low power, and robust connectivity, all within a 624-pin MAPBGA package.
Designed for industrial-grade applications, it supports high-resolution displays, 2D/3D graphics acceleration, and multiple I/O and communication interfaces, including Ethernet, CAN, and USB.
MCIMX6G2CVM05AB: Technical Specifications
| Feature | Specification |
|---|---|
| Core | Dual ARM Cortex-A9 |
| CPU Speed | Up to 800 MHz |
| Internal RAM | 256 KB (L2 cache) |
| External Memory Interface | DDR3, LPDDR2 (up to 2 GB) |
| Graphics | 2D and 3D graphics engine, OpenGL ES support |
| Video Acceleration | 1080p video decode, 720p encode |
| Display Interfaces | LVDS, HDMI, MIPI DSI |
| Communication Interfaces | 2 × Ethernet, 2 × CAN, UART, SPI, I²C |
| Multimedia | Audio, camera interface, SD/MMC, USB OTG/Host |
| Security | High Assurance Boot, Crypto Engine |
| Package | 624-MAPBGA (0.8 mm pitch) |
| Temperature Range | –40°C to +105°C (Industrial Grade) |
| Power Management | Integrated PMU for efficient low-power modes |
📘 Download the official NXP datasheet (PDF)
Key Applications of the MCIMX6G2CVM05AB
Thanks to its high performance, industrial qualification, and media handling capabilities, the MCIMX6G2CVM05AB is widely used in:
🏭 1. Industrial Control & Automation
-
Human-Machine Interfaces (HMIs)
-
Programmable Logic Controllers (PLCs)
-
Edge AI gateways and data loggers
-
Multi-protocol industrial communication hubs
🚘 2. Automotive & Transportation
-
Infotainment and head-unit controllers
-
Digital instrument clusters
-
Advanced driver information systems
-
Telematics control units (TCUs)
📱 3. Consumer and Smart Devices
-
Smart displays and tablets
-
Multimedia kiosks
-
Voice and video-enabled home automation systems
🌐 4. Networking & IoT Edge Devices
-
Industrial and home routers
-
Secure IoT gateways
-
Embedded Linux platforms with secure boot
Why Engineers Choose MCIMX6G2CVM05AB
✅ Dual-Core Processing Power
The dual ARM Cortex-A9 cores provide scalable performance for multitasking, real-time data processing, and multimedia applications.
✅ Multimedia & Graphics Support
Hardware acceleration for 2D/3D graphics, OpenVG, and OpenGL ES support makes this processor ideal for rich GUI-based systems.
✅ Flexible Connectivity
With native support for CAN, Ethernet, USB, UART, and SPI, the MCIMX6G2CVM05AB can be integrated into complex connected environments.
✅ Secure Boot and Industrial Reliability
Features like High Assurance Boot (HAB) and industrial temperature tolerance ensure security and robustness in mission-critical systems.
Software & Development Ecosystem
The MCIMX6G2CVM05AB is supported by NXP’s robust Linux and Yocto ecosystem, enabling rapid development and deployment:
🔧 Supported Tools and Software:
-
U-Boot and Linux Kernel support
-
Android SDK support (for touch-screen applications)
-
OpenCV, Qt, and GTK+ for GUI and vision-based applications
-
Available with NXP MCUXpresso SDK for peripheral drivers
🔧 Learn more about NXP i.MX Development Tools
Source MCIMX6G2CVM05AB from DRex Electronics
At DRex Electronics, we provide certified, traceable, and competitively priced components for automotive, industrial, and embedded design teams. When sourcing the MCIMX6G2CVM05AB through DRex, you benefit from:
-
✅ ISO 9001-certified sourcing processes
-
✅ Access to new, obsolete, and hard-to-find parts
-
🌍 Global logistics and just-in-time delivery options
-
🤝 Direct partnerships with top-tier suppliers like NXP Semiconductors, Texas Instruments, and Microchip
🛒 Browse our MCU & SoC catalog or request a quote today for the MCIMX6G2CVM05AB.
Related Processors & Upgrade Options
If you’re comparing options or planning a scalable product roadmap, consider these alternatives:
-
MCIMX6U7CVM08AC – Higher performance variant with more multimedia capabilities
-
MCIMX6Y2CVM08AB – i.MX 6ULL series optimized for low-power Linux applications
-
AM3358BZCZ100 – TI Sitara processor with Cortex-A8 core for industrial Linux systems
-
STM32MP157AAC3 – ST’s dual-core Cortex-A7 MPU with Cortex-M4 for real-time functions
Explore more in our SoC product category.
Final Thoughts
The MCIMX6G2CVM05AB offers a powerful and scalable platform for developers seeking dual-core performance, graphics acceleration, and industrial-grade reliability in one compact package. Whether you’re designing next-generation HMIs, infotainment units, or IoT edge devices, this i.MX 6 processor provides the compute and connectivity foundation your system demands.
Partner with DRex Electronics to source the MCIMX6G2CVM05AB and other application processors—with confidence, speed, and full technical support.
