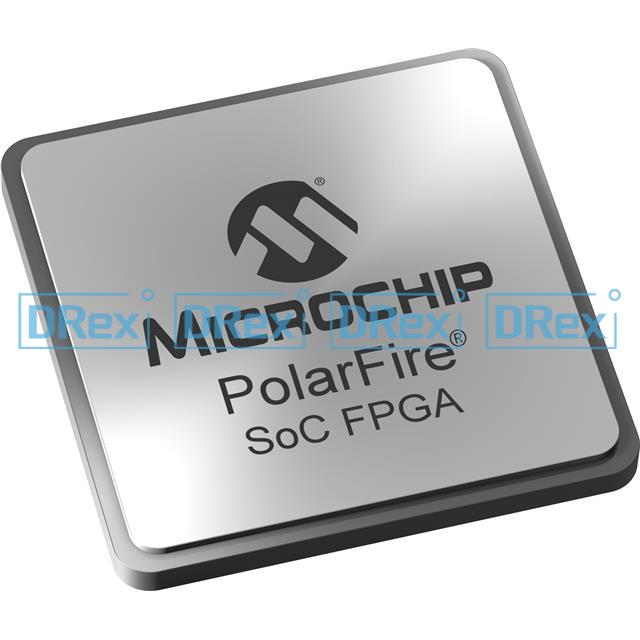

MPFS025T-FCSG325E is one of the products in Microchip’s leading PolarFire® SoC FPGA series.It combines a low-power FPGA architecture with flash memory and a multi-core RISC-V-based microprocessor subsystem, providing a unique combination of performance, efficiency, and enhanced security for peripheral applications.
This device is specifically designed for system engineers and OEM designers who require precise real-time operation, secure processing, and energy efficiency, with all features integrated into a single platform.
🔧 Technical Specifications
Component number MPFS025T-FCSG325E
Device series PolarFire SoC
Logic unit (LUT) 23K LUT
Subprocessor system Quad-core 64-bit RISC-V U54 + 1 RISC-V E51 control core
Operating frequency maximum 667 MHz (U54), 500 MHz (E51)
FPGA structure Non-interchangeable, flash memory-based
Memory L2 cache (2 MB), eSRAM (max. 8 MB), with ECC protection
Interfaces PCIe Gen2, Gigabit Ethernet, USB 2.0 OTG, CAN, I2C, SPI
Security features Secure boot, PUF, tamper resistance, cryptographic module (AES, SHA, RSA)
Package FCSG325 (small pitch ball grid, 325 balls)
Temperature range –40 °C to +100 °C (extended commercial level)
🔗 Product page Microchip PolarFire SoC
✅ Main features of MPFS025T-FCSG325E
- ✅ Built-in RISC-V processor subsystem with Linux-compatible performance
- ✅ Low power consumption, stable power consumption up to 25 mW
- ✅ Secure design, equipped with an enhanced cryptographic accelerator and PUF technology
- ✅ True and asynchronous processing
- ✅ FPGA architecture for immediate start-up and use immediately after connection
- ✅ Suitable for artificial intelligence at the edge, industrial automation, and defense-grade processing
📦 Learn more about PolarFire SoC
💡 Use cases
- Artificial intelligence at the edge and machine learning
Achieving integration of RISC-V core and FPGA architecture:
- Real-time artificial intelligence at the edge
- Preprocessing of visual, audio, and sensor data
- Deployment of machine learning models with high efficiency and lower power consumption compared to GPU-based solutions
- Industrial automation and control
MPFS025T-FCSG325E is suitable for:
- Programmable logic controllers (PLCs)
- Motor control systems
- Secure remote input/output devices and data collectors
- Specific communications via TSN and CAN
🔗 Learn how DRex supports industrial OEM devices
- Communication infrastructure
Support for critical communication infrastructure requirements:
- Packet sorting and filtering in software-defined networks
- Reliable firmware boot and encryption
- Integrated Linux + real-time tasks via heterogeneous cores
- Space and defense
Enhancements for demanding environments and sophisticated threat models:
- Tamper protection
- Highly reliable FPGA configuration
- Radiation hardening in extended devices
🔗 Contact DRex Electronics to purchase highly reliable products
🔄 Related devices PolarFire SoC
Device number Logic unit Core architecture Packaging Application area
MPFS025T-FCSG325E 23K LUTs 4x RISC-V U54 + E51 FCSG325 Industry and networks
MPFS250T-FCSG536I 250K LUTs same model FCSG536 High-performance computing
MPFS100T-FCVG484I 100K LUTs same model FCVG484 Secure edge processing
📨 Request a quote from DRex Electronics
🔐 Integrated security architecture
Security integrated in the chip:
- Supports AES-256, SHA-256, RSA, and ECC
- Security key storage based on a function that cannot be replicated (PUF)
- Secure operation and JTAG lockdown and tamper detection
- Resistance to side-channel attacks and fault injection attacks
These features make the MPFS025T-FCSG325E an ideal choice for edge devices that rely on zero trust and defense-grade platforms.
⚙️ Development tools and ecosystem
Microchip provides a complete development environment:
- Libero SoC Design Suite – for FPGA logic design
- SoftConsole IDE – for integrated RISC-V development
- Mi-V Ecosystem – a series of open source tools and middleware for RISC-V
- PolarFire SoC Icicle Kit – a hardware platform for beginners
🔗 Discover the Mi-V RISC-V ecosystem
