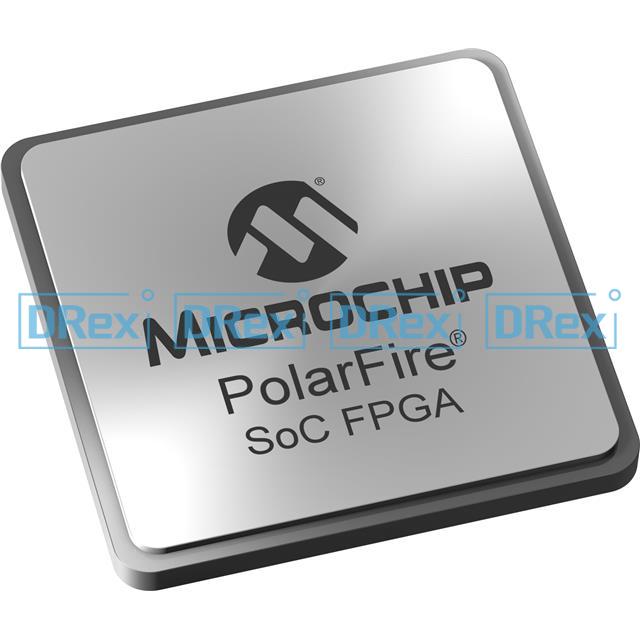

The MPFS250T-FCSG536I is a cutting-edge SoC FPGA from Microchip’s PolarFire® SoC family. It combines a low-power, radiation-tolerant FPGA fabric with a quad-core RISC-V processor subsystem, offering a balanced mix of flexibility, performance, and security.
Designed for edge computing, industrial automation, aerospace, and networking infrastructure, this device allows developers to create highly deterministic systems with real-time processing capabilities and customizable logic.
MPFS250T-FCSG536I Technical Specifications
|
Feature |
Specification |
|
Family |
PolarFire® SoC |
|
Processor Subsystem |
Quad-core RISC-V RV64GC + Monitor core |
|
Logic Elements |
254K LEs |
|
Embedded RAM |
18.8 Mbits |
|
DSP Blocks |
784 MAC blocks (18×18) |
|
Transceivers |
12.7 Gbps SERDES, up to 4 lanes |
|
On-chip Memory |
2 MB L2 memory shared between cores |
|
Security |
Secure boot, PUF, anti-tamper |
|
Package |
FCSG536 (536-ball, Flip-Chip BGA) |
|
Operating Temp |
–40°C to +100°C (Industrial Grade) |
|
Core Voltage |
0.95V / I/O support up to 3.3V |
🔗 MPFS250T-FCSG536I – Microchip Product Page
🔗 PolarFire SoC Family Overview
Key Features
- ✅ Quad-core RISC-V CPU for flexible Linux + RTOS partitioning
- ✅ Flash-based FPGA fabric with instant-on behavior
- ✅ Ultra-low power architecture optimized for embedded and edge devices
- ✅ ECC-protected RAM and deterministic execution
- ✅ Integrated multi-layer bus fabric with AXI/AHB support
- ✅ Industrial-grade temperature tolerance for rugged environments
Applications of MPFS250T-FCSG536I
- Industrial Automation and Control
The MPFS250T is ideal for:
- Real-time PLC control systems
- Industrial networking (TSN, GigE, etc.)
- Edge-based predictive maintenance using AI
Its deterministic RISC-V architecture and reprogrammable logic fabric enable highly integrated, compact system controllers for Industry 4.0 applications.
- Aerospace and Defense Systems
Used in:
- Secure satellite modems and payload controllers
- Missile guidance and avionics subsystems
- Anti-tamper and radiation-tolerant applications
The device’s instant-on startup, secure boot, and SEU-immune flash technology make it well-suited for SWaP-constrained (Size, Weight, and Power) military systems.
- Edge Computing & Embedded AI
Capable of:
- Sensor data aggregation and pre-processing
- Smart vision systems and low-latency analytics
- Intelligent gateway devices
With low power consumption and a RISC-V Linux platform, the MPFS250T is optimized for intelligent edge processing.
- Networking Infrastructure
Supports:
- Network interface cards
- Packet classification and encryption
- Time-sensitive networking (TSN)
Its multi-gigabit SerDes and programmable logic allow high-throughput custom networking logic.
Software & Development Tools
🧰 Libero® SoC Design Suite
Microchip’s primary FPGA development environment:
- RTL entry (VHDL, Verilog, SystemVerilog)
- Timing analysis, simulation, and power estimation
- Integration with SoftConsole for RISC-V application development
🔗 Download Libero SoC Suite
🧪 SoftConsole IDE
For RISC-V development:
- C/C++ compiler and debugger
- BSPs for Linux and RTOS
- Integrated with PolarFire SoC dev kits
🔗 Get SoftConsole for RISC-V
Why Source MPFS250T-FCSG536I from DRex Electronics?
At DRex Electronics, we specialize in high-performance SoC FPGA sourcing. We support engineering teams, OEMs, and contract manufacturers by providing reliable stock, BOM matching, and global logistics for MPFS250T-FCSG536I and other PolarFire SoC parts.
Why Choose DRex?
- ✅ Access verified Microchip inventory
- ✅ Lifecycle tracking and cross-part suggestions
- ✅ ISO 9001-certified supply chain
- ✅ Anti-counterfeit & traceability protocols
- ✅ Trusted by global leaders in aerospace, automotive, telecom, and industrial automation
