What is a rectifier circuit?
A rectifier circuit is a circuit that uses one or more diodes to change the direction of the current flow in an AC source. A diode is a device that allows current to flow only in one direction, from its anode (positive terminal) to its cathode (negative terminal). By placing diodes in different configurations across an AC source, we can create different types of rectifier circuits that produce different types of DC output.
Why do we need rectifier circuits?
We need rectifier circuits because many devices and systems require a constant and stable DC voltage to operate properly. For example, electronic devices such as computers, smartphones, and TVs use DC power to process and display information. Similarly, battery-powered devices such as flashlights, toys, and electric vehicles use DC power to store and deliver energy. However, most of the power sources available to us are AC sources, such as wall outlets, generators, and transformers. Therefore, we need rectifier circuits to convert AC power to DC power for these applications.
What are the types of rectifier circuits?
There are two main types of rectifier circuits: half-wave rectifiers and full-wave rectifiers. A half-wave rectifier circuit only uses one diode and passes only one half-cycle of the AC waveform to the load. A full-wave rectifier circuit uses two or four diodes and passes both half-cycles of the AC waveform to the load. Each type of rectifier circuit has its own advantages and disadvantages, which we will discuss in detail in the following sections.
In addition to the type of rectifier circuit, we also need to consider the type of filter circuit and voltage regulator that are used in conjunction with the rectifier circuit. A filter circuit is a circuit that smooths out the pulsating DC output of the rectifier circuit and reduces the ripple voltage. A voltage regulator is a circuit that provides a constant DC output voltage regardless of variations in input voltage or load current. These components are also important for ensuring the quality and reliability of the DC power supply.
In this article, you will learn about the following topics:
- Half-wave rectifier: The simplest type of rectifier circuit that uses one diode and produces a low-efficiency and high-ripple DC output.
- Full-wave rectifier: The most common type of rectifier circuit that uses two or four diodes and produces a high-efficiency and low-ripple DC output.
- Filter circuit: The circuit that smooths out the pulsating DC output of the rectifier circuit and reduces the ripple voltage.
- Voltage regulator: The circuit that provides a constant DC output voltage regardless of variations in input voltage or load current.
By the end of this article, you will have a solid understanding of how rectifier circuits work and how to choose or design a suitable rectifier circuit for your needs. So let’s get started!
Half-wave rectifier
A half-wave rectifier is the simplest type of rectifier circuit that uses only one diode and produces a low-efficiency and high-ripple DC output. In this section, you will learn how a half-wave rectifier circuit works, what are its advantages and disadvantages, and how to calculate its performance parameters.
How does a half-wave rectifier circuit work?

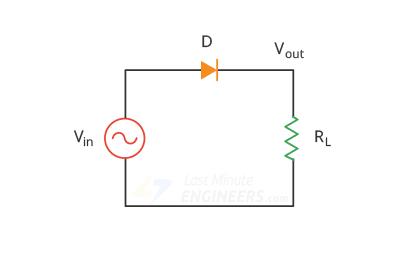

A half-wave rectifier circuit consists of three main components: a transformer, a diode, and a resistive load. The circuit diagram of a half-wave rectifier is shown below:
The transformer is used to step down or step up the AC input voltage as per the requirement. The diode is connected in series with the secondary winding of the transformer and the load. The diode acts as a switch that allows current to flow only in one direction.
The working of a half-wave rectifier can be understood by observing the input and output voltage waveforms as shown below:
During the positive half-cycle of the AC input voltage, the diode is forward biased and conducts current to the load. The output voltage follows the input voltage and has the same shape and amplitude.
During the negative half-cycle of the AC input voltage, the diode is reverse biased and blocks current from flowing to the load. The output voltage drops to zero and remains there until the next positive half-cycle.
The result is a pulsating DC output voltage that has only positive values and has gaps between each cycle. This output voltage is not suitable for most applications that require a smooth and constant DC voltage.
What are the advantages and disadvantages of a half-wave rectifier?
The main advantage of a half-wave rectifier is its simplicity and low cost. It requires only one diode to construct and does not need a center-tapped transformer. It can be used for some applications that do not require high power or high-quality DC output, such as signal detection, battery charging, or dimming lamps.
The main disadvantages of a half-wave rectifier are its low efficiency and high ripple voltage. It wastes half of the input power by blocking one half-cycle of the AC waveform. It also produces a large amount of harmonic distortion and noise in the output voltage due to the frequent switching of the diode. These drawbacks limit its use for applications that require high power or high-quality DC output, such as electronic devices, motors, or inverters.
Full-wave rectifier
A full-wave rectifier is a type of rectifier circuit that uses two or four diodes and produces a high-efficiency and low-ripple DC output. In this section, you will learn how a full-wave rectifier circuit works, what are its advantages and disadvantages, and how to calculate its performance parameters.
How does a full-wave rectifier circuit work?
A full-wave rectifier circuit consists of three main components: a transformer, two or four diodes, and a resistive load. There are two types of full-wave rectifier circuits: center-tap design and bridge design. The circuit diagrams of both types are shown below:

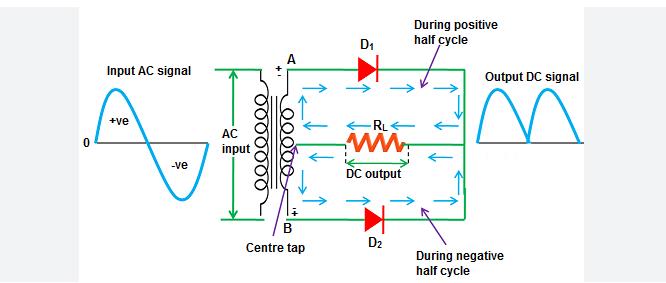

The center-tap design uses a transformer with a center-tapped secondary winding and two diodes. The bridge design uses a transformer without a center tap and four diodes.
The working of both types of the full-wave rectifier can be understood by observing the input and output voltage waveforms as shown below:
During the positive half-cycle of the AC input voltage, both types of full-wave rectifier conduct current to the load through different paths. For the center-tap design, the upper diode is forward biased and the lower diode is reverse biased. The current flows from the upper half of the secondary winding to the load and back to the lower half of the secondary winding. For the bridge design, the upper-left and lower-right diodes are forward biased and the other two diodes are reverse biased. The current flows from the entire secondary winding to the load and back to the secondary winding.
During the negative half-cycle of the AC input voltage, both types of full-wave rectifier conduct current to the load through different paths. For the center-tap design, the lower diode is forward biased and the upper diode is reverse biased. The current flows from the lower half of the secondary winding to the load and back to the upper half of the secondary winding. For the bridge design, the lower-left and upper-right diodes are forward biased and the other two diodes are reverse biased. The current flows from the entire secondary winding to the load and back to the secondary winding.
The result is a pulsating DC output voltage that has both positive and negative values and has no gaps between each cycle. This output voltage is more suitable for most applications that require a smooth and constant DC voltage.
What are the advantages and disadvantages of a full-wave rectifier?
The main advantage of a full-wave rectifier is its high efficiency and low ripple voltage. It utilizes both half-cycles of the AC waveform and produces a higher average output voltage. It also produces a lower amount of harmonic distortion and noise in the output voltage due to the less frequent switching of the diodes.
The main disadvantage of a full-wave rectifier is its higher cost and complexity. It requires more diodes to construct and may need a center-tapped transformer. It also produces a higher peak inverse voltage across each diode, which may require more robust diodes.
Filter circuit
A filter circuit is a circuit that smooths out the pulsating DC output voltage of the rectifier circuit and reduces the ripple voltage. In this section, you will learn what a filter circuit is, how it works, and what types of filter circuits are available.
What is a filter circuit?
A filter circuit is a circuit that uses one or more passive components, such as capacitors or inductors, to eliminate or attenuate the unwanted AC component present in the DC output voltage of the rectifier circuit. The filter circuit is connected in parallel with the load and acts as a reservoir of charge or a choke of current that smooths out the fluctuations in the output voltage.
How does a filter circuit work?
A filter circuit works by storing and releasing energy during each cycle of the output voltage. Depending on the type of component used, the filter circuit can either charge and discharge a capacitor or oppose and allow a change in current through an inductor. The filter circuit reduces the amplitude of the AC component and increases the average value of the DC component, resulting in a smoother and more constant DC output voltage.
What are the types of filter circuits?

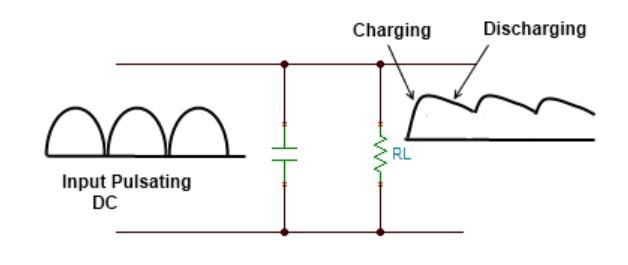

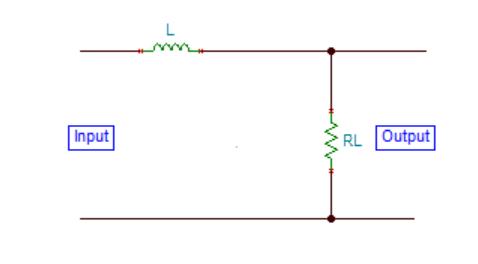

There are two main types of filter circuits: capacitor filter and inductor filter. The circuit diagrams of both types are shown below:
The capacitor filter uses a capacitor to store charge during the peak value of the output voltage and release it during the valley value of the output voltage. The capacitor acts as a short circuit for the AC component and an open circuit for the DC component. The capacitor filter reduces the ripple voltage and increases the average value of the output voltage.
The inductor filter uses an inductor to oppose a change in current during each cycle of the output voltage. The inductor acts as an open circuit for the AC component and a short circuit for the DC component. The inductor filter reduces the ripple voltage and maintains a constant current through the load.
Each type of filter circuit has its own advantages and disadvantages, which we will discuss in detail in the following sections.
Voltage regulator
A voltage regulator is a circuit that provides a constant DC output voltage regardless of variations in input voltage or load current. In this section, you will learn what a voltage regulator is, how it works, and what types of voltage regulators are available.
What is a voltage regulator?
A voltage regulator is a circuit that maintains a fixed output voltage within a specified range of input voltage or load current. A voltage regulator is used to improve the stability and quality of the DC power supply and to protect the load from overvoltage or undervoltage conditions.
How does a voltage regulator work?
A voltage regulator works by using feedback to control the output voltage. The feedback mechanism compares the actual output voltage with a reference voltage and adjusts the output voltage accordingly. Depending on the type of component used, the voltage regulator can either vary the resistance or the current in the output circuit to regulate the output voltage.
What are the types of voltage regulators?

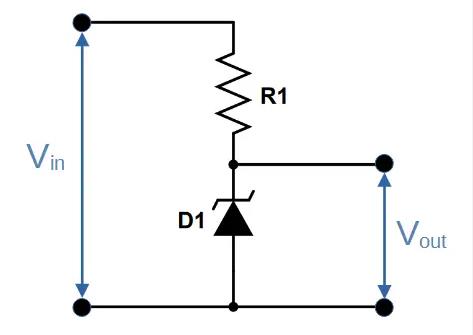

There are two main types of voltage regulators: zener diode voltage regulator and transistor voltage regulator. The circuit diagrams of both types are shown below:
The zener diode voltage regulator uses a zener diode to provide a constant reference voltage across its terminals within a certain range of current. The zener diode acts as a variable resistor that maintains a fixed output voltage by absorbing or supplying excess current from or to the load.
The transistor voltage regulator uses a transistor to provide a variable current in the output circuit. The transistor acts as a variable switch that maintains a fixed output voltage by controlling the base current of the transistor using feedback from a potential divider or an operational amplifier.
Each type of voltage regulator has its own advantages and disadvantages, which we will discuss in detail in the following sections.
Conclusion
In this article, you have learned about the basics of rectifier circuits and how they are used to convert AC voltage to DC voltage. You have also learned about the different types of rectifier circuits, such as half-wave rectifier, full-wave rectifier, center-tap design, and bridge design. You have also learned about the different types of filter circuits and voltage regulators that are used to improve the quality and stability of the DC output voltage.
To summarize the main points of this article, here are some key takeaways:
- Rectifier circuits are essential for many applications that require a steady and reliable source of DC power, such as power supplies, radio receivers, and flame detectors.
- A half-wave rectifier circuit uses one diode and passes only one half-cycle of the AC waveform to the load. It has a low efficiency and a high ripple voltage.
- A full-wave rectifier circuit uses two or four diodes and passes both half-cycles of the AC waveform to the load. It has a high efficiency and a low ripple voltage.
- A filter circuit uses a capacitor or an inductor to smooth out the pulsating DC output voltage of the rectifier circuit and reduce the ripple voltage.
- A voltage regulator uses a zener diode or a transistor to provide a constant DC output voltage regardless of variations in input voltage or load current.
We hope that this article has helped you understand the concept and working of rectifier circuits and how to choose or design a suitable rectifier circuit for your needs. If you have any questions or feedback, please feel free to contact us. Thank you for reading!
