In applications where reliability, low power, and real-time control are critical, the S9S12G128AMLH from NXP Semiconductors provides an ideal solution. Built on the well-established S12 16-bit architecture, this microcontroller is widely used in automotive body electronics, motor control, and general-purpose industrial systems.
As part of NXP’s S12 MagniV mixed-signal microcontroller portfolio, the S9S12G128AMLH offers a balance of performance, integration, and cost-efficiency—backed by automotive-grade reliability and long-term product support.
At DRex Electronics, we help OEMs source components like the S9S12G128AMLH to ensure fast, global delivery of quality microcontrollers for production-ready applications.
What is the S9S12G128AMLH?
The S9S12G128AMLH is a 16-bit microcontroller from NXP’s S12G family, built around the enhanced S12 CPU core and optimized for scalable automotive applications. With 128 KB of Flash memory, integrated CAN and LIN modules, and a wide operating temperature range, it is specifically designed for cost-sensitive body and chassis control units.

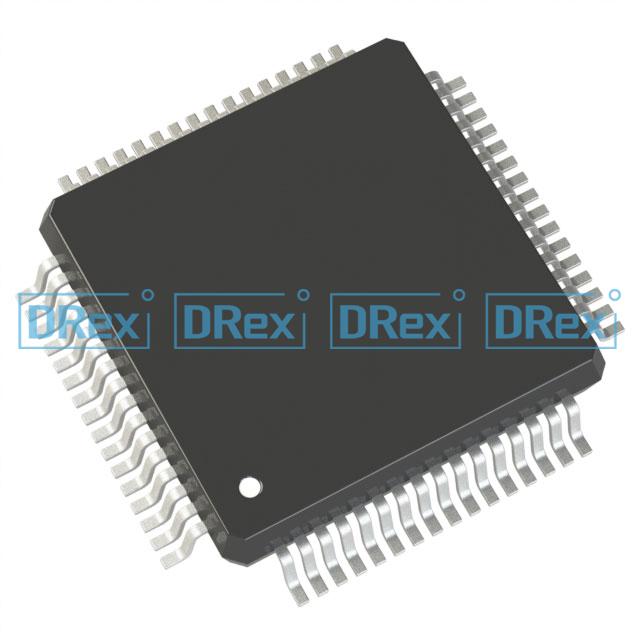

Packaged in a 64-pin LQFP (Low-profile Quad Flat Package), this MCU is ideal for space-constrained automotive or industrial PCBs.
S9S12G128AMLH: Key Technical Specifications
| Feature | Specification |
|---|---|
| Core | S12 16-bit CPU |
| Flash Memory | 128 KB |
| RAM | 8 KB |
| EEPROM | 2 KB |
| Clock Speed | Up to 25 MHz |
| Timers | 8-ch Timer Module, Real-Time Interrupt (RTI) |
| Analog | 10-bit ADC (8 channels) |
| Communication | 1 × CAN, 2 × SCI (UART), 1 × SPI, 1 × I²C, LIN |
| GPIOs | Up to 53 General Purpose I/O |
| Package | LQFP-64 |
| Operating Voltage | 3.0V to 5.5V |
| Temperature Range | –40°C to +125°C (Automotive Grade 1) |
| Security | Watchdog timer, Clock monitor |
📘 View the official S9S12G128AMLH Datasheet (PDF)
Key Applications of the S9S12G128AMLH
Thanks to its robust performance, automotive compliance, and legacy support, the S9S12G128AMLH is a preferred microcontroller in several embedded domains:
🚗 1. Automotive Body and Chassis Systems
-
Door, window, and sunroof control modules
-
Lighting and HVAC control units
-
Seat position and mirror adjustment systems
-
Airbag deployment logic (non-critical path)
🏭 2. Industrial Automation
-
Basic motor controllers
-
Industrial I/O modules
-
Sensor interface boards
-
Small-scale programmable controllers
🏠 3. Consumer and Appliance Applications
-
Smart washing machines and refrigerators
-
Thermostats and HVAC controllers
-
User interface control in household devices
📡 4. Communication Bridges
-
CAN-to-UART converters
-
LIN bus monitoring tools
-
Automotive diagnostics (OBD-II readers)
Why Engineers Choose the S9S12G128AMLH
✅ Mature and Proven 16-bit Platform
The S12 architecture is known for its deterministic behavior and widespread usage in automotive platforms for over two decades.
✅ Automotive-Grade Reliability
-
AEC-Q100 Grade 1 qualified
-
High noise immunity and ESD resilience
-
Temperature tolerance up to +125°C
✅ Robust Analog and Timing Capabilities
-
Integrated 10-bit ADCs with multiple input channels
-
Flexible timer system with PWM generation support
-
Real-time interrupt capability for deterministic performance
✅ Built-in Communication Interfaces
-
On-chip CAN and LIN modules reduce the need for external transceivers
-
Multiple UARTs and I²C/SPI interfaces for external device communication
Software and Development Ecosystem
The S9S12G128AMLH is supported by NXP’s S12 development environment, making it easier for engineers to prototype, debug, and deploy applications.
🔧 Key Tools and Resources:
-
Assembly and C compiler support
-
FreeRTOS and AUTOSAR-compatible configurations
-
Full toolchain support from IAR, Lauterbach, and PEmicro
Source the S9S12G128AMLH with Confidence at DRex Electronics
At DRex Electronics, we provide trusted component sourcing for embedded and automotive OEMs. With the S9S12G128AMLH, we ensure:
-
✅ ISO 9001-certified sourcing and traceability
-
🚀 Fast global delivery options
-
📦 Availability for bulk procurement or scheduled sourcing
-
🤝 Access to hard-to-find parts and long-life support from NXP and other top suppliers
Explore our Microcontroller catalog or request a quote for the S9S12G128AMLH today.
Related Microcontrollers and Alternatives
If you’re comparing the S9S12G128AMLH with other 16-bit or 32-bit MCUs, here are some alternatives:
-
S9S12G64F0MLF – A 64KB Flash variant from the same family
-
S32K144UAT0VLLT – ARM Cortex-M4F with CAN FD and advanced motor control
-
ATmega328PB-AU – AVR-based alternative for general embedded use
-
LPC1768FBD100 – 32-bit Cortex-M3 MCU with Ethernet and USB
For more options, explore our full Microcontrollers section.
Final Thoughts
The S9S12G128AMLH is a robust, automotive-grade 16-bit microcontroller that continues to serve in a wide range of embedded applications requiring reliability, real-time responsiveness, and long-term support. Whether you’re building a new automotive body module or updating an industrial control board, this MCU offers a dependable, cost-effective solution.
Partner with DRex Electronics to source the S9S12G128AMLH and other NXP microcontrollers, backed by expert service, competitive pricing, and global supply reliability.
