Unlocking the Potential of the LM2903

The LM2903 is a widely used dual voltage comparator integrated circuit designed for general purpose analogue signal comparison in automotive, industrial and consumer electronics applications. Known for its low power consumption, wide voltage range and open-collector outputs, the LM2903 is a flexible and reliable choice for both engineers and amateurs.

In this article, we will look at the design, features and operating principles of the LM2903 and show you how to use it effectively in your next project. We will also provide a reliable source for purchasing the LM2903 and related analog components .

What is the LM2903?

The LM2903 is a dual comparator integrated circuit that compares two input voltages and outputs a digital signal based on which one is higher or lower. It contains two independent voltage comparators in a single 8-pin package and typically operates from 2 to 26 V.

It operates in the same way as the LM393, but is optimised for a wider voltage and temperature range, making it suitable for automotive and industrial applications.

The LM2903 and other analogue comparator ICs can be found at DRex Electronics.

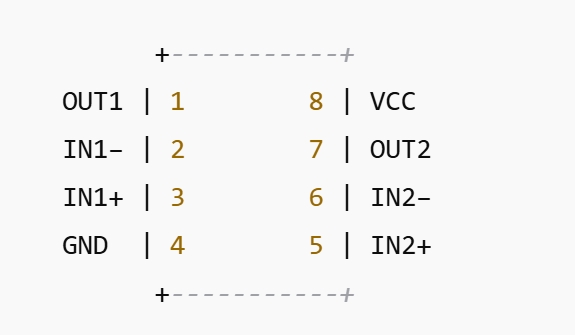

LM2903 Pinout

The LM2903 comes in an 8-pin DIP, SOIC, or TSSOP package. Here’s the pin configuration:

How the LM2903 Works

Each comparator inside the LM2903 compares the voltage at the non-inverting input (+) to the voltage at the inverting input (–).

• If V(+) > V(–) → Output goes LOW (because it’s open-collector and needs a pull-up resistor)

• If V(+) < V(–) → Output is HIGH (i.e., open circuit; pulled HIGH by the external resistor)

💡 Important: The output is open-collector, which means you need to connect an external pull-up resistor to get valid HIGH output signals.

LM2903 main features

• Two independent comparators on the same chip
• Wide input voltage range: 2 V to 36 V
• Low input offset voltage
• Low power consumption
• Open collector outputs for flexible connection at logic level.
• For models with single supply voltage, the common modeinputs have a ground connection.
• Extended temperature range: ideal for automotive and industrial applications.

LM2903 vs LM393

The LM2903 is built to handle tougher environments and broader operating conditions.

LM2903 applications

⚡ 1. Voltage Monitoring

Compare voltage levels in battery-operated or solar-powered systems.

🔌 2. Zero-Crossing Detectors

Detect when a signal crosses zero volts — useful in AC signal processing.

🔋 3. Window Comparators

Use two comparators to detect whether a signal is within a voltage range.

🛠️ 4. Level Shifting and Logic Conversion

Bridge different logic levels (e.g., 3.3V and 5V) using open-collector outputs.

🚗 5. Automotive Systems

Used in battery monitoring, engine control units (ECUs), and power distribution systems.

Tips on how to use LM2903 in your project

• Always use pull-up resistors (typically 4.7 kΩ-10 kΩ) on the output terminals.
• To increase hysteresis, in noisy environments use positive feedback (resistor from output to non-inverting input) .
• Use 0,1 µF ceramic capacitors to block the power supply near the chip.
• The input must not exceed the power supply – use a limiting diode if necessary.

Where to buy LM2903 and related components

DRex Electronics offers

• original LM2903 reference chips
• ✅ Auxiliary components: resistors, capacitors, reference voltages.
• ✅ Comparator modules for prototyping and training
• Connectors and terminals for rapid prototyping

Get everything you need to build complex comparator circuits in our analogue integrated circuits department.

Conclusion

The LM2903 is a reliable and flexible comparator integrated circuit that should be in every engineer’s arsenal. Its wide voltage range, two comparators and robust design make it ideal for any application – from simple voltage comparisons to complex analog signal processing.

Are you ready to use the LM2903 in your projects?

Order the original LM2903IC and related analog components today from DRex Electronics, your precision electronics partner.
