The CD4011 is a foundational IC in the world of digital electronics. This seemingly simple chip, housing four independent 2-input NAND gates, has enabled generations of engineers, students, and hobbyists to build logic-driven systems, from timing circuits to control logic. Known for its versatility, low power consumption, and wide supply range, the CD4011 remains a go-to solution in both learning environments and commercial products.
In this article, we’ll explore the internal workings, pin configuration, real-world applications, and why the CD4011 still holds an essential place in today’s digital circuit design. We’ll also show you where to source genuine CD4011 ICs, logic families, and digital components at DRex Electronics — your trusted global partner in electronic component sourcing.
🔍 What Is the CD4011?
The CD4011 is a quad 2-input NAND gate IC built using CMOS technology. It contains four independent NAND gates in a single 14-pin DIP or SOIC package.
✅ Key Features:
-
Supply voltage: 3V to 15V
-
Low power CMOS logic
-
Propagation delay: ~60ns (at 5V)
-
High noise immunity
-
Wide operating temperature range
🛒 Need the CD4011 or compatible logic gates?
👉 Shop digital ICs at DRex Electronics →

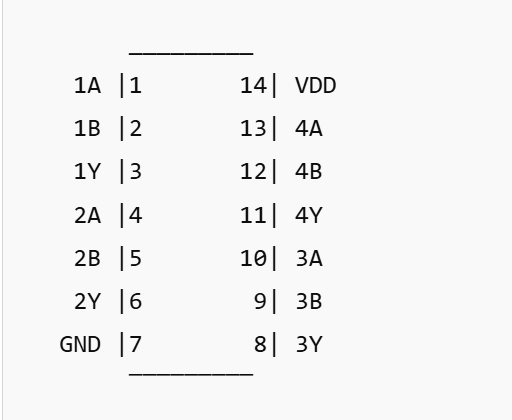

🧠 CD4011 Pin Configuration (14-Pin DIP/SOIC)
Pin Breakdown:
-
Inputs: 1A, 1B, 2A, 2B, 3A, 3B, 4A, 4B
-
Outputs: 1Y, 2Y, 3Y, 4Y
-
VDD: Positive supply voltage (3V–15V)
-
GND: Ground
Each gate follows the basic NAND logic:
Y=A⋅B‾text{Y} = overline{A cdot B}
📘 Related: Understanding Logic Translators & Level Shifters
⚙️ How the CD4011 Works
Each gate in the CD4011 behaves as a standard NAND gate. That means it outputs logic high (1) unless both inputs are high, in which case it outputs logic low (0).
| A | B | Y (Output) |
|---|---|---|
| 0 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
By wiring NAND gates together in creative ways, you can implement ANY logic gate, including NOT, AND, OR, NOR, and XOR — making the CD4011 incredibly versatile.
🛠️ Common Applications of the CD4011
| Application | Role of CD4011 |
|---|---|
| Logic control circuits | Logic decision-making and signal conditioning |
| Timers and oscillators | Multivibrators, clock generation |
| Combinational logic design | Logic gates for control or computation |
| Flip-flop implementation | SR latches using NAND gates |
| Light control systems | On/off logic using sensors |
📘 Related: How to Use the Oscilloscope’s X-Y Display Correctly

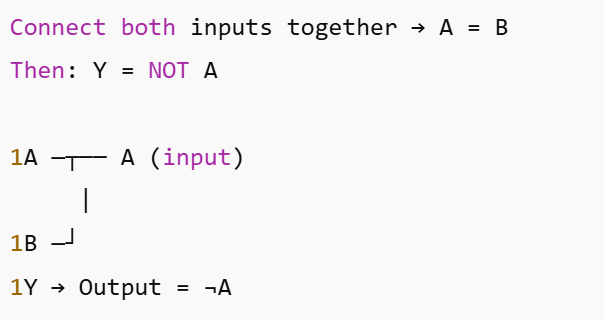

🧪 Example: Creating a NOT Gate with a CD4011
You can use a single NAND gate as an inverter:
This ability to build other gates using NANDs makes CD4011 a favorite for educational and low-cost designs.
🔋 Power Efficiency in the CD4011
-
Operates across low-voltage ranges (down to 3V)
-
Static CMOS design → virtually zero current draw in steady state
-
Excellent for battery-powered and low-energy applications
🛒 Looking for low-power digital ICs?
👉 Browse CMOS components at DRex Electronics →
🏭 Industries That Use CD4011
| Industry | Typical Uses |
|---|---|
| Industrial Automation | Digital logic controllers |
| Education & R&D | Logic labs and circuit experiments |
| Consumer Electronics | Logic-level sensing, on/off control |
| Automotive | Simple digital control units |
| Home Automation | Logic-driven lighting and alarms |
🔁 CD4011 Alternatives and Equivalents
| Part Number | Logic Family | Comments |
|---|---|---|
| MC14011 | CMOS | Identical function, different manufacturer |
| SN74HC00 | TTL-compatible | Faster, higher current; not CMOS |
| HEF4011BP | CMOS | Philips/NXP version |
| CD74HCT00 | HCT (high-speed CMOS) | Faster switching, TTL input compatible |
📘 Related: CD4011 vs SN74 Series – CMOS vs TTL Logic Explained
📚 Additional Learning Resources
✅ Conclusion
The CD4011 is a timeless classic in digital electronics — a simple yet powerful chip that enables the creation of nearly any logic function. With its low power operation, versatility, and availability, it remains a top choice for prototyping, education, and even production designs.
