For engineers looking to balance performance, cost, and power efficiency, the Xilinx Spartan-6 FPGA family remains a go-to solution for a broad range of embedded applications. One of the standout models in this family is the XC6SLX25-2FTG256I, which combines a reasonable logic density with robust I/O capabilities—all in a compact, industrial-grade package.
Whether you’re building a low-cost industrial controller, implementing digital signal processing (DSP), or teaching hardware design, the XC6SLX25-2FTG256I offers flexibility and performance within tight design constraints.
What is the XC6SLX25-2FTG256I?

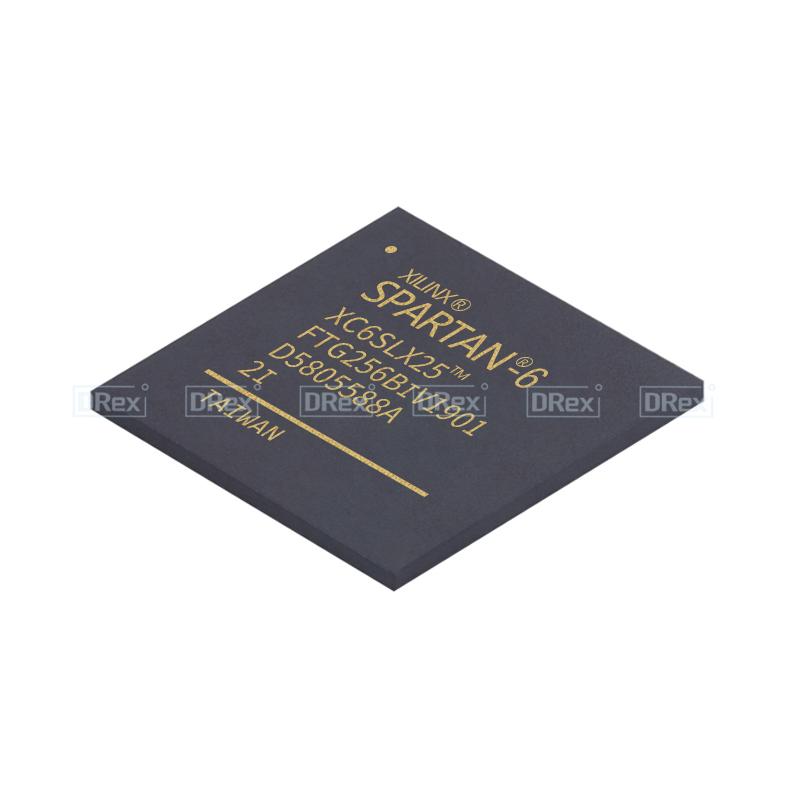

The XC6SLX25-2FTG256I is a low-power, industrial-grade FPGA from the Xilinx Spartan-6 LX family, optimized for cost-sensitive applications. It offers a balance of logic, memory, and DSP resources, while supporting a wide range of I/O standards.
The device is housed in a FTG256 BGA package and features a -2 speed grade, indicating moderate-to-high performance. The “I” suffix confirms it supports industrial temperature ranges (–40°C to +100°C), making it suitable for rugged environments.
👉 View the full Spartan-6 Family Overview on AMD Xilinx
XC6SLX25-2FTG256I: Technical Specifications
Here’s a detailed breakdown of the key specs:
| Feature | Specification |
|---|---|
| Family | Spartan-6 LX |
| Device | XC6SLX25 |
| Package | FTG256 (Fine-pitch 256-ball BGA) |
| Speed Grade | -2 |
| Temperature Range | Industrial (–40°C to +100°C) |
| Logic Slices | 3,758 |
| Logic Cells | 24,051 |
| Flip-Flops | 30,064 |
| LUTs | 15,853 |
| Block RAM | 936 Kbits |
| DSP Slices | 38 |
| Clock Management Tiles (CMTs) | 4 |
| Max User I/Os | 186 |
| Operating Voltage | 1.2V core (with 3.3V-tolerant I/O) |
📘 Access Spartan-6 Data Sheet (DS162)
Understanding the Package: FTG256
The FTG256 is a compact 256-ball BGA package with a fine-pitch layout, ideal for space-constrained designs. It supports up to 186 I/O pins, allowing for robust connectivity in embedded systems.
Common interfaces supported include:
-
LVDS
-
LVCMOS (1.2V to 3.3V)
-
SPI, I²C, UART, CAN, etc.
Key Applications of XC6SLX25-2FTG256I
The XC6SLX25-2FTG256I is well-suited for applications requiring moderate logic capacity, low power, and industrial-grade durability:
🏭 Industrial Control & Automation
-
Programmable logic controllers (PLCs)
-
Motor control and drive systems
-
Industrial sensor fusion
🎛️ Consumer & Commercial Electronics
-
Custom I/O expansion modules
-
Bridge chips for legacy interfaces (PCI, RS-485)
-
Automotive infotainment systems
📡 Communication Systems
-
Ethernet MAC and PHY control
-
Protocol conversion (e.g., SPI-to-UART)
-
Error correction and signal encoding
🎓 Education & Research
-
Perfect for FPGA design labs
-
Affordable dev kits with HDL learning environments
-
Prototyping basic embedded DSP systems
Spartan-6 vs Artix-7: A Brief Comparison
| Feature | Spartan-6 (XC6SLX25) | Artix-7 (XC7A35T) |
|---|---|---|
| Process Node | 45nm | 28nm |
| Logic Cells | ~24K | ~33K |
| DSP Slices | 38 | 90 |
| Power Efficiency | Good | Better |
| I/O Voltage Range | Wide (1.2V–3.3V) | Narrower (mostly 1.2V–1.8V) |
| Cost | Lower | Moderate |
| Ideal Use | Legacy, cost-sensitive designs | Modern, performance-focused designs |
While Spartan-6 is based on an older node, it remains valuable for legacy or long-life-cycle products, especially where wide I/O voltage tolerance is needed.
Development Boards Featuring XC6SLX25
Numerous affordable dev boards support the XC6SLX25 device, making it easy to start prototyping:
-
Digilent Nexys 3 (legacy) – Academic board ideal for digital logic courses
-
Numato Labs Spartan-6 FPGA Board – Great for embedded interface prototyping
-
Avnet Spartan-6 LX25 MicroBoard – Compact board for industrial use
These boards offer USB, JTAG, and multiple peripheral headers to accelerate development.
Development Tools for Spartan-6
Since Spartan-6 is a mature product line, it is supported by ISE Design Suite (not Vivado):
🔧 ISE WebPACK (Free)
-
Supports VHDL/Verilog synthesis
-
RTL simulation, constraints, and timing analysis
📥 Download Xilinx ISE Design Suite
Note: Spartan-6 is not supported in Vivado, as it’s considered a legacy device.
Where to Buy XC6SLX25-2FTG256I
You can purchase this device from authorized distributors:
⚠️ Supply Note: As Spartan-6 is a mature product line, availability may fluctuate due to EOL planning and replacement by newer families (like Artix-7).
Why Choose XC6SLX25-2FTG256I?
✅ Proven Reliability – Used in thousands of commercial and industrial products
✅ Wide I/O Support – Including 3.3V, which newer families often lack
✅ Compact Package – Suitable for space-limited designs
✅ Cost-Effective – Ideal for legacy system upgrades
✅ Industrial-Grade Operation – Withstands extreme temperatures and conditions
Related Resources and Further Reading
Final Thoughts
The XC6SLX25-2FTG256I continues to serve as a reliable, cost-efficient, and flexible FPGA solution, especially in applications where long product life, wide I/O compatibility, and proven performance are key. Whether you’re developing in a classroom, prototyping in a lab, or deploying into industrial environments, this device offers the capability to meet diverse needs.
