Your Ultimate Guide to the MMBT2222A Transistor: An In-Depth Analysis

The MMBT2222A is a small but powerful NPN bipolar junction transistor (BJT) that’s become a go-to component in countless electronic designs. Known for its versatility, reliability, and high switching speed, this SMD (surface-mount) version of the classic 2N2222 is widely used in amplification, switching, and signal processing circuits.

In this guide, we’ll explore the key features, specifications, circuit applications, and testing methods for the MMBT2222A. If you’re designing or repairing electronics, you’ll also find helpful links to purchase transistors, MOSFETs, ICs, and more at DRex Electronics.

🔍 What Is the MMBT2222A?

The MMBT2222A is a general-purpose NPN transistor in a SOT-23 surface-mount package. It’s designed for use in low- to medium-power switching and amplification applications and offers fast response times, making it ideal for both analog and digital circuits.

This transistor is essentially the SMD equivalent of the 2N2222A, one of the most widely used BJTs in electronics.

⚙️ Key Features and Specifications

🛒 Looking for surface-mount BJTs? Browse our collection of transistors at DRex Electronics

🧪 MMBT2222A Pin Configuration (SOT-23 Package)

   _______

  |                  |

  |                  |

  |_______|

   |  |   |

   C B E

• C – Collector
• B – Base
• E – Emitter

Make sure to match the pinout with your PCB layout to avoid reverse biasing or damage.

🔌 Applications of MMBT2222A

Due to its versatility and compact footprint, the MMBT2222A is used across a wide range of circuits:

✅ 1. Switching Applications

• Controlling LEDs, relays, and small motors
• Logic-level signal switching
  👉 Learn how to design switching circuits with our post on MOSFET vs BJT for switching

✅ 2. Amplifier Circuits

• Small signal amplifiers
• Audio preamps
• RF circuits (thanks to 250 MHz f_T)

✅ 3. Signal Processing

• Pulse shaping
• Frequency generation
• Oscillator feedback stages

✅ 4. Digital Circuits

• Used in open-collector outputs
• Level shifting in microcontroller applications

🧰 Example Circuit: MMBT2222A as a Switch

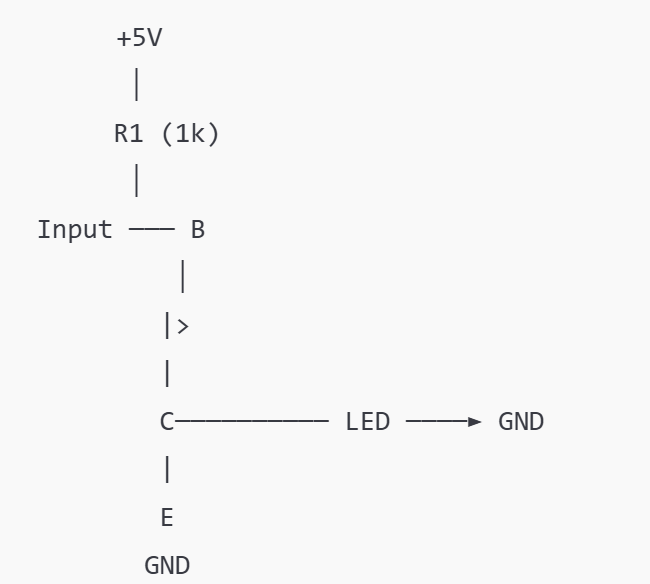

LED Control Example:

• When a HIGH signal is applied to the base, the transistor turns ON and allows current to flow through the LED.
• The base resistor (R1) limits the current to prevent damage.

✅ Why Use MMBT2222A?

🔍 How to Test an MMBT2222A

You can use a digital multimeter in diode mode:

1. Red lead to base, black lead to collector → should show ~0.6V
2. Red lead to base, black lead to emitter → should show ~0.6V
3. Reverse both → should show OL (open line)
4. Base-to-collector and base-to-emitter readings confirm functionality.

For faster results, use an automated transistor tester module (e.g., TC1, GM328) to check:

• Gain (h_FE)
• Pinout
• Leakage current

🛒 Where to Buy MMBT2222A and Other Transistors

At DRex Electronics, we stock:

• ✅ MMBT2222A and other general-purpose BJTs
• ✅ Power MOSFETs and IGBTs for high-current applications
• ✅ Amplifier ICs, analog circuits, and passive components
• ✅ Trusted brands like ON Semiconductor, STMicroelectronics, Nexperia, and more

🛒 Browse all transistors and switching devices →

✅ Conclusion

The MMBT2222A is a compact, reliable, and affordable NPN transistor that performs excellently in both switching and amplifying roles. With its small SOT-23 footprint and strong electrical characteristics, it’s ideal for space-constrained designs, consumer electronics, and high-speed circuits.

🔋 Whether you’re building prototypes or scaling production,
DRex Electronics has the MMBT2222A and all the supporting components you need—ready for global delivery and backed by technical support.
