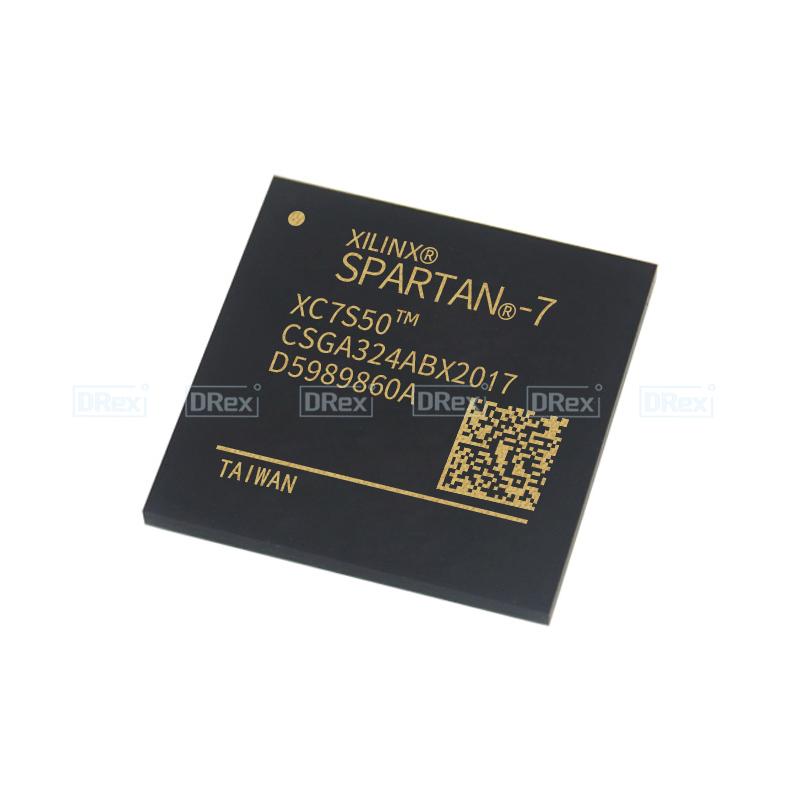

XC7S50-1CSGA324I: High-Efficiency Spartan-7 FPGA

In modern embedded systems, balancing cost, performance, and power efficiency is crucial—especially in industrial, automotive, and communications applications. The XC7S50-1CSGA324I, part of the Xilinx Spartan®-7 FPGA family, delivers on all three fronts with a flexible, feature-rich architecture designed for low-cost, high-reliability deployments.

Whether you’re developing real-time control systems, hardware accelerators, or edge AI applications, this industrial-grade FPGA offers an efficient platform for scalable, low-power processing.

🔍 What is XC7S50-1CSGA324I?

The XC7S50-1CSGA324I is a Spartan-7 FPGA from AMD Xilinx, optimized for cost-sensitive, low-power, and high-performance embedded designs. Built using 28nm Artix-7 architecture, this device provides modern FPGA features such as high-speed serial connectivity, rich DSP resources, and industrial temperature operation, all within a compact CSGA324 BGA package.

📊 XC7S50-1CSGA324I: Technical Specifications

📄 For full device specifications, download the Spartan-7 Product Specification Sheet (PDF).

✅ Key Features and Benefits

The XC7S50-1CSGA324I strikes an excellent balance between logic capacity and power efficiency, making it suitable for a wide range of embedded applications. Key features include:

• Artix-7-Based Architecture
  Leverages the high performance-per-watt of 28nm architecture for cost efficiency.

• Integrated DSP Slices
  Ideal for signal processing, motor control, and low-latency analytics at the edge.

• Extensive I/O Flexibility
  Supports multiple voltage standards and high-speed interfaces like LVDS.

• High Block RAM Capacity
  Enables buffer-heavy applications like image processing and communications.

• Industrial Temperature Rating
  Suitable for deployment in rugged environments such as factories or automotive electronics.

• Small Form Factor Package (CSGA324)
  Optimized for dense PCB layouts, ideal for embedded modules and system-on-board (SoB) designs.

🧠 Common Applications of XC7S50-1CSGA324I

The XC7S50-1CSGA324I is used across various industries where real-time control, deterministic processing, and low power draw are crucial.

🏭 Industrial Automation

• Used in motor control, sensor interfacing, and real-time signal processing

• Enables deterministic logic for safety-critical control systems

🚗 Automotive Electronics

• Ideal for ADAS, dashboard systems, and vehicle diagnostics

• Industrial-grade operation ensures temperature tolerance and long-term reliability

📡 Telecommunications

• Provides protocol bridging, baseband processing, and line interface logic

• Useful in network appliances, gateways, and data concentrators

📷 Embedded Vision & Edge AI

• Processes sensor data from cameras, radar, or LIDAR at the edge

• Offloads compute tasks from embedded CPUs using DSP slices and LUTs

🔌 Consumer Electronics & IoT

• Smart wearables, gateways, and remote monitoring devices

• Efficient logic fabric for low-latency hardware control

🔗 Need more options? Explore FPGAs and SoCs from DRex Electronics.

🔧 Development Tools

Designing with the XC7S50-1CSGA324I is streamlined using AMD Xilinx Vivado® Design Suite, which offers:

• VHDL/Verilog/Block Design Entry

• IP Catalog with DSP, AXI, memory, and communication cores

• Timing, power, and thermal analysis

• On-chip debugging with ILA (Integrated Logic Analyzer)

🛠 Download Vivado Design Suite to get started with Spartan-7 development.

🔗 Buy XC7S50-1CSGA324I from DRex Electronics

At DRex Electronics, we offer expert sourcing for programmable logic devices like the XC7S50-1CSGA324I. Whether you’re building a new embedded design or maintaining a current system, we offer:

• ✅ Real-time inventory and competitive pricing

• ✅ ISO 9001-certified quality processes

• ✅ Support for active, hard-to-find, and end-of-life (EOL) components

• ✅ Fast global delivery to support just-in-time manufacturing

📩 Request a quote or inquire about stock availability today.

🔁 Alternative Devices and Scalability

Depending on your design requirements, you can scale up or down within the Spartan-7 family:

Need help selecting the right part? Contact DRex for expert cross-referencing and design consultation.

🧩 Summary

The XC7S50-1CSGA324I offers an ideal mix of performance, efficiency, and I/O flexibility in a compact footprint. Built on the reliable Spartan-7 platform, this FPGA empowers embedded designers to deliver low-latency, high-reliability, and cost-effective systems for today’s industrial and connected applications.

From motor control units to edge vision platforms, the XC7S50-1CSGA324I stands out as a robust and versatile solution for next-generation embedded systems.
