XC7Z020-1CLG400I: Powerful SoC FPGA

As embedded systems continue to evolve, designers are increasingly turning to System-on-Chip FPGAs (SoC FPGAs) to integrate processing power with programmable logic in a single device. The XC7Z020-1CLG400I, part of the Xilinx Zynq-7000 series, is a standout choice in this category—offering robust performance, low power consumption, and flexible I/O capabilities.

This industrial-grade device is especially popular among OEMs and system integrators in automotive, aerospace, industrial automation, and smart embedded systems.

🔍 What is XC7Z020-1CLG400I?

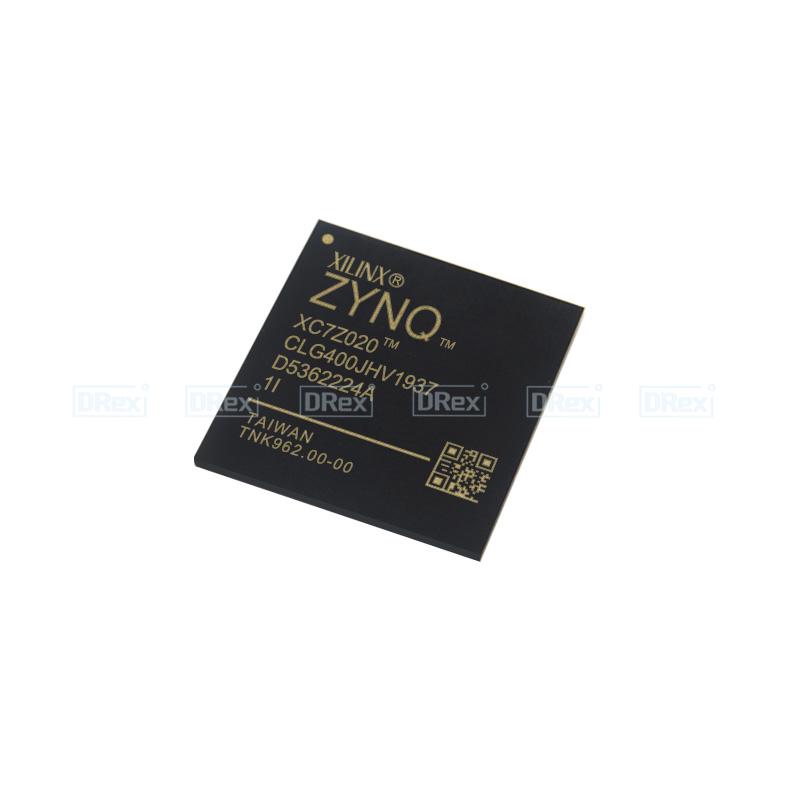

The XC7Z020-1CLG400I is a Zynq-7000 SoC FPGA that combines a dual-core ARM® Cortex®-A9 processor with Xilinx 7-series programmable logic on a single chip. This architecture enables the execution of software and hardware tasks in parallel—offering both flexibility and performance for complex embedded applications.

Packaged in a compact CLG400 BGA format, the XC7Z020-1CLG400I is rated for industrial temperature ranges, making it ideal for deployment in harsh environments.

📊 Technical Specifications

📄 Zynq-7000 Datasheet from AMD/Xilinx (PDF)

✅ Key Features & Benefits

The XC7Z020-1CLG400I is a highly integrated SoC FPGA that delivers the power of software programmability with the flexibility of hardware-level customization:

• ARM Cortex-A9 Processing System

  • Linux, RTOS, and bare-metal capable

  • Includes NEON, FPU, L1/L2 cache, and MMU

• FPGA Fabric Based on Artix-7 Architecture

  • Offers programmable interfaces, accelerators, and parallel processing pipelines

• Extensive I/O and Peripheral Support

  • Supports DDR3, USB, Ethernet, CAN, UART, I2C, SPI, and more

• Secure Boot and Configuration

  • Hardware root of trust and JTAG protection for secure applications

• Industrial-Grade Reliability

  • Ideal for deployment in rugged and mission-critical environments

🧠 Application Areas

The XC7Z020-1CLG400I is designed for systems that need tight integration between software and hardware, including:

🔧 Industrial Automation

• Motor control and industrial networking

• Real-time data processing and protocol bridging

🚗 Automotive Electronics

• ADAS (Advanced Driver-Assistance Systems)

• Instrument clusters and infotainment

• Vehicle-to-everything (V2X) communication

🛰 Aerospace & Defense

• Secure communication modules

• Avionics systems with deterministic control logic

• Real-time sensor fusion

📡 Telecommunications

• Wireless infrastructure

• Baseband processing and custom PHY interfaces

📱 Embedded Vision & AI

• Edge AI acceleration

• Smart cameras and intelligent video processing

🔗 Looking for other high-performance SoCs or FPGAs? Browse our inventory at DRex Electronics.

🔧 Design Tools & Ecosystem

Developing with the XC7Z020-1CLG400I is made easier with the Xilinx Vivado Design Suite, offering:

• HDL design and synthesis (VHDL/Verilog)

• IP integrator for drag-and-drop SoC building

• AXI interfaces for processor-FPGA communication

• Debugging and performance profiling

🛠 You can also use the Xilinx PetaLinux tools to develop embedded Linux platforms for Zynq SoCs.

🔗 Source the XC7Z020-1CLG400I from DRex Electronics

At DRex Electronics, we specialize in sourcing and supplying high-performance components like the XC7Z020-1CLG400I to OEMs, contract manufacturers, and system designers around the world.

Why DRex?

• ✅ ISO 9001 Certified for quality assurance

• ✅ Global sourcing network with fast turnaround

• ✅ Access to FPGAs, SoCs, and Microprocessors from AMD/Xilinx, Intel, Lattice, and more

• ✅ Expert support for supply chain optimization and legacy part sourcing

📩 Contact us today to check availability, request pricing, or find cross-compatible alternatives.

🔁 Migration and Scalability

If your design requires more or fewer resources, consider these options:

• XC7Z010 – Lower logic density, ideal for simpler control tasks

• XC7Z030 or XC7Z045 – Higher logic density and DSP slices for intensive processing

DRex can assist you with cross-referencing and sourcing multiple variants of the Zynq-7000 family.

🧩 Summary

The XC7Z020-1CLG400I is a highly flexible, industrial-grade SoC FPGA that enables real-time processing, custom hardware acceleration, and system-level integration on a single chip. With a dual-core ARM processor and programmable logic fabric, it offers the best of both worlds—ideal for next-generation embedded systems.

From automotive to aerospace, this device is trusted for reliability, performance, and design agility.
