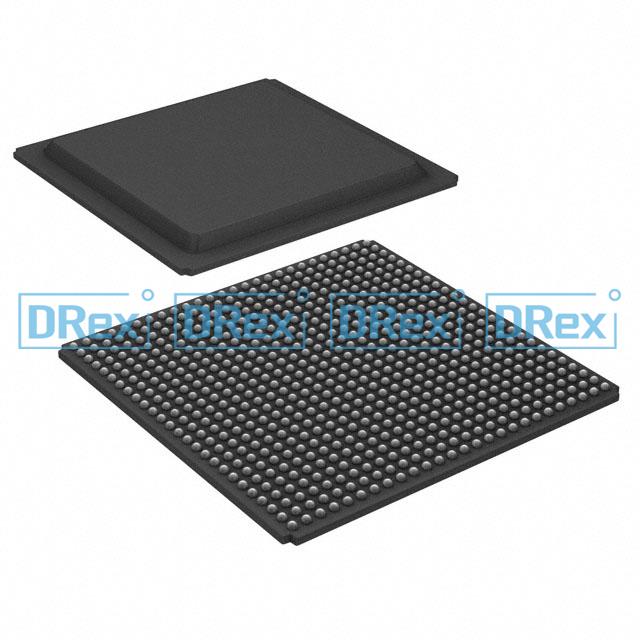

XC7Z030-2FFG676I: A High-Performance Zynq-7000 SoC

As embedded systems continue to push the boundaries of performance, integration, and efficiency, developers require platforms that combine the flexibility of programmable logic with the power of a full-featured processor system. The XC7Z030-2FFG676I from the Xilinx Zynq-7000 SoC family offers just that—a seamless blend of dual-core ARM Cortex-A9 processors and Kintex-7 class FPGA fabric, built to serve demanding applications in embedded vision, military systems, communications, and AI acceleration.

What is XC7Z030-2FFG676I?

The XC7Z030-2FFG676I is a Zynq-7000 All Programmable SoC that integrates:

• A dual-core ARM Cortex-A9 Processing System (PS)

• A high-density Kintex-7 Programmable Logic (PL)

• A wide set of embedded peripherals, high-speed I/Os, and security features

The part number breakdown:

• Z030: High-end Zynq-7000 device with Kintex-7 equivalent logic

• -2: Speed grade indicating high performance

• FFG676: 676-ball Fine-Pitch Flip-Chip BGA package

• I: Industrial temperature range (–40°C to +100°C)

👉 Zynq-7000 Product Family Overview – Xilinx

XC7Z030-2FFG676I: Detailed Technical Specifications

📘 Download XC7Z030 Datasheet (DS190)

Key Features and Architecture

The XC7Z030 combines the best of both processing and logic domains:

✅ Processing System (PS)

• Dual ARM Cortex-A9 CPUs with NEON, FPU, and L1/L2 cache

• AMBA AXI-based high-bandwidth interconnect

• I/O interfaces: UART, I2C, SPI, CAN, SDIO, GPIO, Ethernet, USB

✅ Programmable Logic (PL)

• Kintex-7 FPGA fabric offering:

  • 1,600 DSP slices for signal processing and AI acceleration

  • Rich block RAM for buffering and temporary data storage

  • High-speed serial I/Os (GTX transceivers)

✅ Integrated PCIe and Memory Interfaces

• Hard PCIe Gen2 x4 controller

• DDR3/DDR2 memory controller with ECC support

Applications of XC7Z030-2FFG676I

Because of its high DSP density, robust ARM processing, and secure programmable logic, the XC7Z030-2FFG676I is ideal for a range of demanding applications:

📷 Embedded Vision & Video Processing

• Real-time image analytics and object detection

• 4K/HD video encoding, decoding, and transmission

• Camera interface and pre-processing for machine vision

🛡️ Aerospace, Defense & Secure Systems

• Secure boot and data encryption with AES/RSA

• Embedded mission control logic and telemetry processing

• Software-defined radio (SDR) and radar processing

📡 Communications & Networking

• Protocol bridging and packet classification

• Wireless baseband offload (5G/4G/LTE)

• Network-on-Chip and Time-Sensitive Networking (TSN)

🧠 Edge AI & Machine Learning

• Hardware-accelerated CNN inference pipelines

• Custom AI preprocessing blocks on the PL

• Integration with Vitis AI for embedded ML workflows

🏭 Industrial Automation & Robotics

• Real-time motor control and sensor fusion

• Safety-compliant PLC logic

• Predictive maintenance with ML/AI in hardware

Development Tools and Software Ecosystem

AMD (Xilinx) provides a full suite of tools for hardware/software co-design:

🔧 Vivado Design Suite

• RTL design, IP integration, timing analysis

• On-chip debugging via ILA

• Supports FPGA design for the PL

🔧 Vitis Unified Software Platform

• Develop C/C++ apps for the ARM cores

• AI engine acceleration using Vitis AI

• Linux and RTOS deployment support

🔧 PetaLinux

• Build and configure embedded Linux OS

• Ideal for rapid prototyping of SoC-based systems

👉 Download Vivado, Vitis, and PetaLinux

Development Boards Featuring XC7Z030

Several boards and SoM platforms feature the XC7Z030 SoC, including:

• ZC706 Evaluation Kit – Official Xilinx dev board featuring the XC7Z045 (superset of Z030)

• Trenz Electronic TE0803 Series – Compact SoMs with full Zynq-7000 integration

• Avnet Mini-Module Plus Zynq-7000 SoC – Industrial-grade SoMs ideal for production

These platforms provide essential I/Os like USB, HDMI, DDR3, Ethernet, PCIe, and GPIO for rapid application development.

Where to Buy XC7Z030-2FFG676I

You can source this SoC through trusted distributors:

• Digi-Key Product Page

• Mouser Electronics

• Avnet

⚠️ Note: Check for industrial-grade version availability and lead times as these parts are often used in high-reliability applications.

XC7Z030 vs XC7Z020 vs XC7Z045 – Quick Comparison

Final Thoughts: Why Choose XC7Z030-2FFG676I?

The XC7Z030-2FFG676I is a high-end SoC that brings together the best of embedded software and real-time hardware logic. With Kintex-class FPGA resources, industrial-grade reliability, and flexible security, it’s ideal for developing cutting-edge systems where performance, power efficiency, and integration matter most.

Whether you’re working on edge AI, video pipelines, or secure embedded platforms, this SoC offers a compelling foundation to innovate and deploy with confidence.
